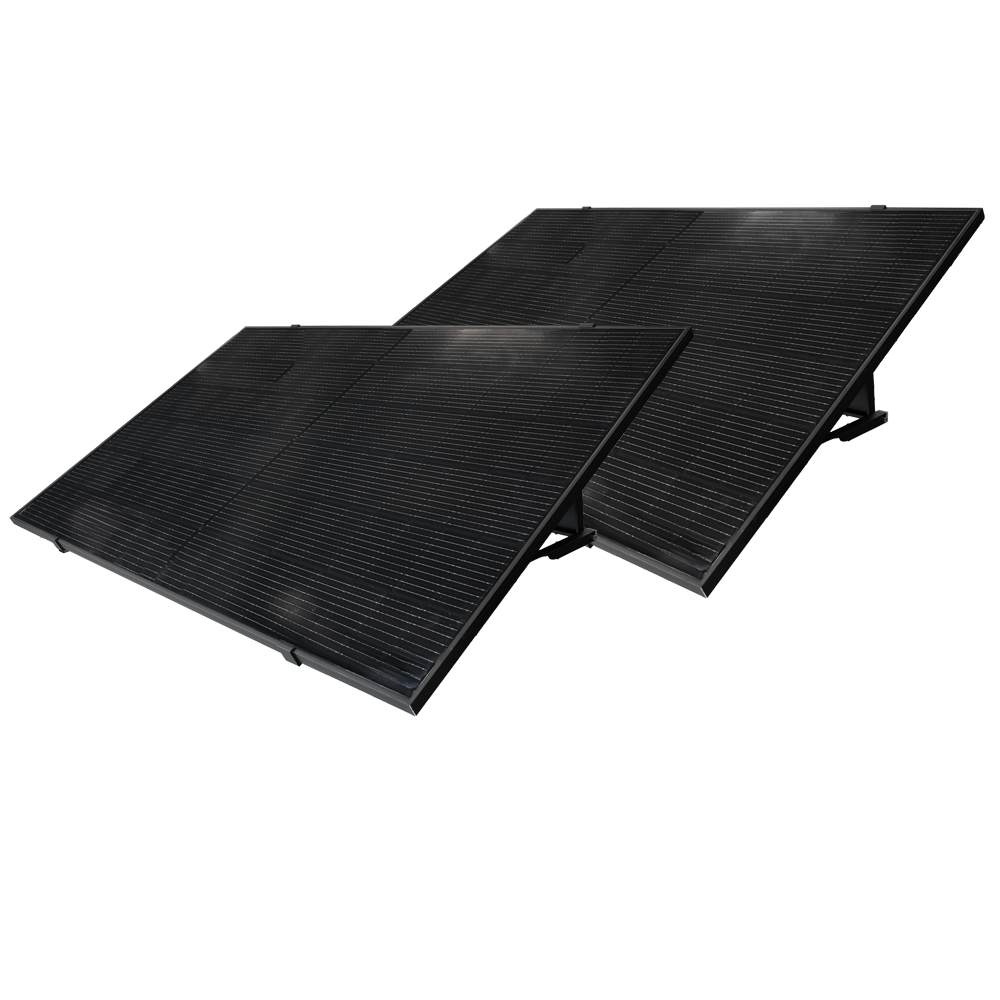

TSUN Solar Pop Up Kit - 2 Full Black panels 420W - Microinverter 800W - Support for floor installation - WiFi connection - Allows connecting up to 11 kits together
TSUN

TSUN Solar Pop Up Kit - 2 Full Black panels 420W - Microinverter 800W - Support for floor installation - WiFi connection - Allows connecting up to 11 kits together

SKU: TSOL-ESK800-PB

850.00 kr

Ekskl. moms

Udsolgt

TSUN Solar Pop Up Kit - 2 Full Black panels 420W - Microinverter 800W - Support for floor installation - WiFi connection - Allows connecting up to 11 kits together

Kategori Balcony photovoltaic
Mærke TSUN

TSUN's range of solar kits is a very practical solution for residential environments. Among its advantages are its DIY (Do It Yourself) philosophy, which makes its installation very simple, with no need for labor, its versatility (with different installation options) and its adjustable installation angle to maximize solar production.

These kits consist of a top quality solar panel, microinverter with WiFi connection for monitoring and Schuko outlet.

Specifically, Pop Up kits are valid for flat surfaces, such as floors, gardens or rooftops.

  • TSUN
  • Solar Kit
  • 2x Full Black Solar Panel by 430W
  • Microinverter MS800 with an AC output power of 800W
  • Pop Up support structure suitable for floor mounting
  • Black colour
  • Pre-assembled for easy installation
  • Adjustable installation angle
  • WiFi connection for control via smartphone APP
  • AC outlet to Schuko

Photovoltaic Module

Power2x 430 W
Efficiency20.7%
ColourBlack
Temperature coefficient-0.34%/ºC
CertificationCE, TUV, UL, CQC, IEC 61215,IEC 61730
Dimensions2x (1722 × 1134 × 30 mm)

Microinverter

ModelMS800
Output power800 W
Rated output voltage220/230/240 V
Nominal frequency50/60 Hz
Power factor> 0.99
Harmonic current distortion< 3%
AC cable length5m
ConnectionWiFi 2.4GHz
CertificationCE-LVD, CE-EMC, CE-RED, VDE 4105, EN 50549-1

Environmental Parameters

IP ratingIP67
Operating room temperature range-25ºC to 65ºC
Operating relative humidity0-100%
Maximum operating height2000 m

Mechanical Parameters

Weight59kg
Dimensions2x 1724 x 1164 x 90 mm
ColourBlack
Bracket CertificationEN 10204:2017, EN 1090-1:2009+A1:2011
Warranty12 years
  • 2x Installation support
  • 2x Solar Panel of 400W
  • Microinverter MS800
  • Installation material
  • 2x DC Cable 2m
  • AC to Schuko cable
