Bidirectional access turnstile master cabinet - Motorized latch | 10.000.000 cycles - Times, alarms and opening modes - Without doors | Customizable with TS-SG808-Dx00 - Made of stainless steel SUS304 - Master right cabinet

Single-entry, two-way motorized gate turnstile
Automatic movement of the acrylic barrier in the walking direction
ULTRA Engine: 10.000.000 of cycles
Initial accelerated and final decelerated gate movement
Customizable clearance width with ultra-thin posts
Compatible with TS-SG808-Dx00 gates
Status LED indicator
Emergency mode: opening in case of fire signal or power failure
Main board for Turnstile configuration (opening times, counter, relay inputs) with display
Secondary board for connection to main board
Made of stainless steel SUS304 and acrylic barriers
Configuration Modes: one-way or two-way, free passage in one or two directions
Compatible with Plug & Play third-party access control systems
Ergonomic design
Universal covers for card readers
You need a TS-SG808-L for the complete installation
Master plate included

Model	TS-SG808-R
Controller	Winch control board with display compatible with any Access Control system
Led indicator	LED status indicator
Barrier movement	Opening angle of the acrylic barrier (not included) in the direction of travel (entry or exit)
Emergency mode	Emergency barrier opening with fire signal Automatic barrier opening in case of power failure (with additional back-up battery not included)
Security	Unauthorized access with sound and lockout Anti-tailgating configurable with sound and shutdown
Compatibility	Integrates with any third party Plug & Play Access Control / Universal caps for RFID readers
Configuration Modes	One or two directions / Free passage in one direction and Access Control in the opposite direction
Manufacturing material	Stainless steel SUS304 and PC caps
Passage speed	50-60 persons/minute
Reliability	Servomotor 10.000.000 of cycles
Infrared sensors	6 infrared sensor pairs
Power	AC 110/220 V / 100 W max.
Temp. operation	-25 ºC ~ +70 ºC
Lane Width	Customizable by adding doors TS-SG808-Dx00
Dimensions of pass	Customizable (W) x 1500 (W) x [%VAR%] (D) mm (suitable for persons with reduced mobility)

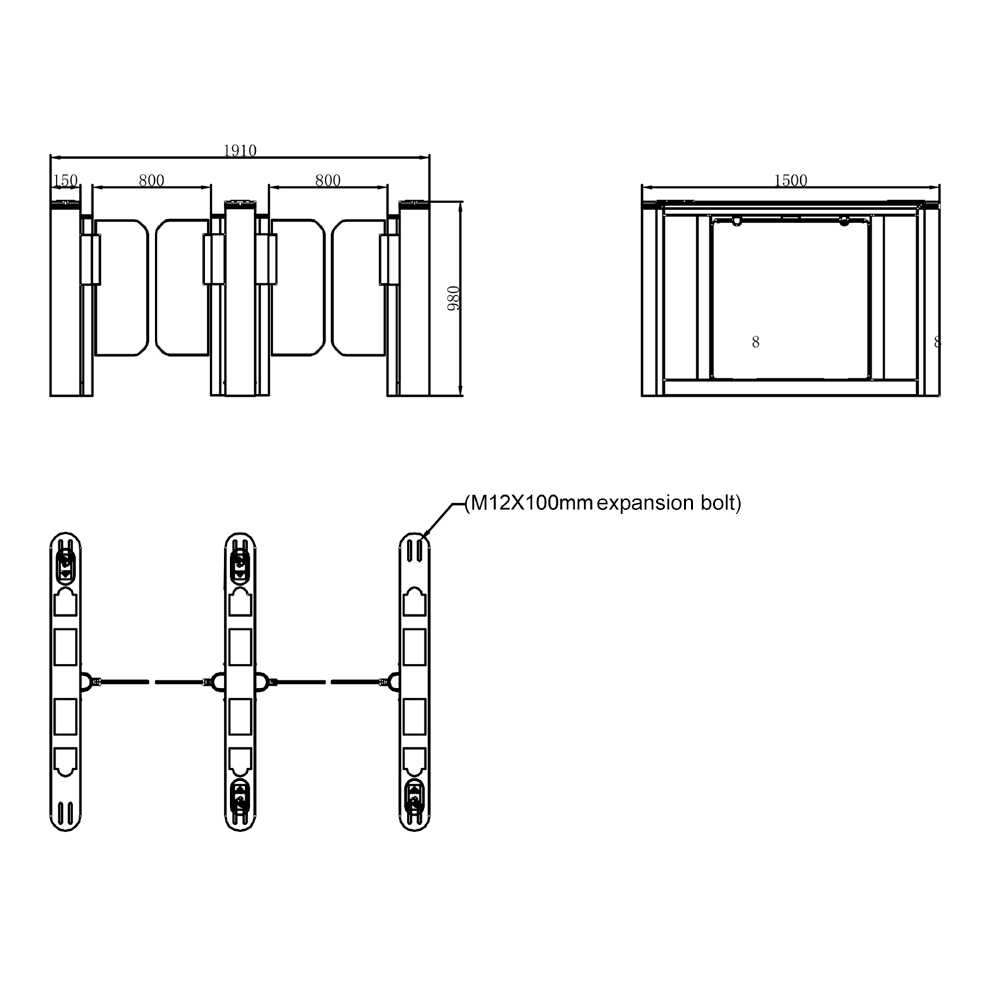

Dimensions	980 (H) x 150 (W) x 1500 (D) mm
Weight	65 kg
Protection	Indoor
