TURBOO

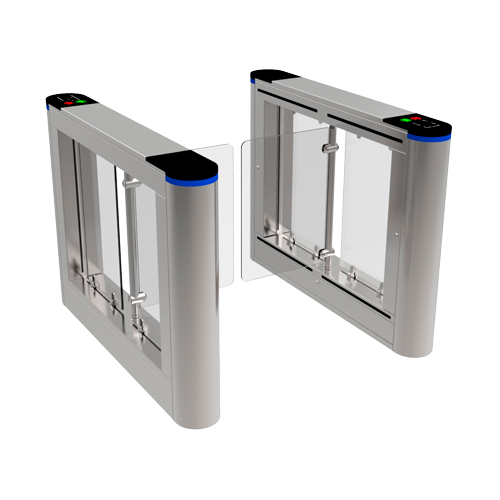

Bidirectional access turnstile - Gate with folding acrylic barrier - Times, alarms and opening modes - Pitch width 600 mm | 3.000.000 cycles - Made of stainless steel SUS304 - Compatible with third party systems
SKU: TS-SG801-600
4.374.94 kr
Ekskl. moms
Udsolgt
Bidirectional access turnstile - Gate with folding acrylic barrier - Times, alarms and opening modes - Pitch width 600 mm | 3.000.000 cycles - Made of stainless steel SUS304 - Compatible with third party systems
Kategori
Motorised Aisle
Mærke
TURBOO
- Single-entry, two-way motorized gate turnstile
- Automatic movement of the acrylic barrier in the walking direction
- ECO Engine: 3.000.000 of cycles
- Pitch width of 600 mm
- Status LED indicator
- Emergency mode: opening in case of fire signal or power failure
- Main board for Turnstile configuration (opening times, counter, relay inputs) with display
- Secondary board for connection to main board
- Made of stainless steel SUS304 and acrylic barriers
- Configuration Modes: one-way or two-way, free passage in one or two directions
- Compatible with third-party Plug & Play Access Control systems
- Ergonomic design
- Universal covers for card readers
| Model | TS-SG801-600 |
| Controller | Winch control board with display compatible with any Access Control system |
| Led indicator | LED status indicator |
| Barrier movement | Opening angle of the acrylic barrier in the direction of travel (entry or exit) |
| Emergency mode | Emergency barrier opening with fire signal Automatic barrier opening in case of power failure (battery back-up included) |
| Security | Unauthorized access with sound and lockout Anti-tailgating configurable with sound and shutdown |
| Compatibility | Integrates with any third party Plug & Play Access Control / Universal caps for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | Stainless steel SUS304 with acrylic doors and PC lids |
| Passage speed | 30-40 persons/minute |
| Reliability | Brushed motor 3.000.000 of cycles |
| Infrared sensors | 5 infrared sensor pairs |
| Power | AC 110/220 V / 35 W max. |
| Temp. operation | -25º C ~ +70º C |
| Lane Width | 600 mm |
| Dimensions of pass | 600 (w) x 1400 (d) mm |

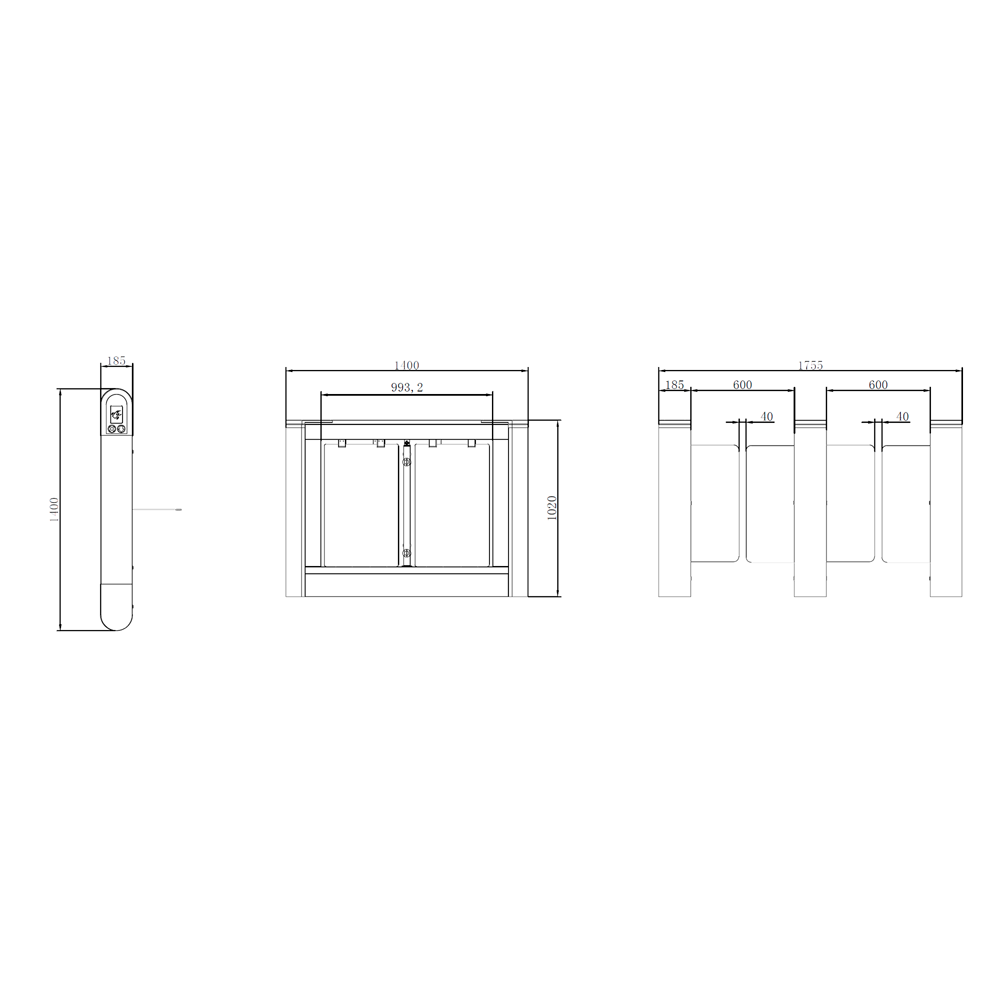

| Dimensions | 1020 (H) x 185 (W) x 1400 (D) mm |
| Weight | 65 kg (each unit) |
| Protection | Indoor |
- Motorized port turnstile
- Mounting material
- User instructions
- Security keys
