Bidirectional access turnstile - Individual motorized turnstile gate - Times, alarms and opening modes - Pitch width 900 mm | 3.000.000 cycles - Made of stainless steel SUS304 - Compatible with third party systems

SKU: TS-SB506-900

14.906.25 kr

Ekskl. moms

Udsolgt

Single-entry, two-way motorized gate turnstile
Automatic movement of the acrylic barrier in the walking direction
ECO Engine: 3.000.000 of cycles
Pitch width of 900 mm
Suitable for access by persons with reduced mobility
Status LED indicator
Emergency mode: opening in case of fire signal or power failure
Main board for Turnstile configuration (opening times, counter, relay inputs) with display
Made of stainless steel SUS304 and acrylic barrier
Configuration Modes: one or two-way
Compatible with third-party Plug & Play Access Control systems
Ergonomic design
Universal covers for card readers

Model	TS-SB506-900
Controller	Winch control board with display compatible with any Access Control system
Led indicator	LED status indicator
Barrier movement	Opening angle of the acrylic barrier in the direction of travel (entry or exit)
Emergency mode	Emergency barrier opening with fire signal Automatic barrier opening in case of power failure (battery back-up included)
Compatibility	Integrates with any third party Plug & Play Access Control / Universal caps for RFID readers
Configuration Modes	One or two-way
Manufacturing material	Stainless steel SUS304 with acrylic door and PC lids
Passage speed	30-40 persons/minute
Reliability	Brushed motor 3.000.000 of cycles
Power	AC 220/240 V / 50 W max.
Temp. operation	-25º C ~ +70º C
Lane Width	900 mm
Dimensions of pass	900 (W) x 440 (D) mm (suitable for persons with reduced mobility)

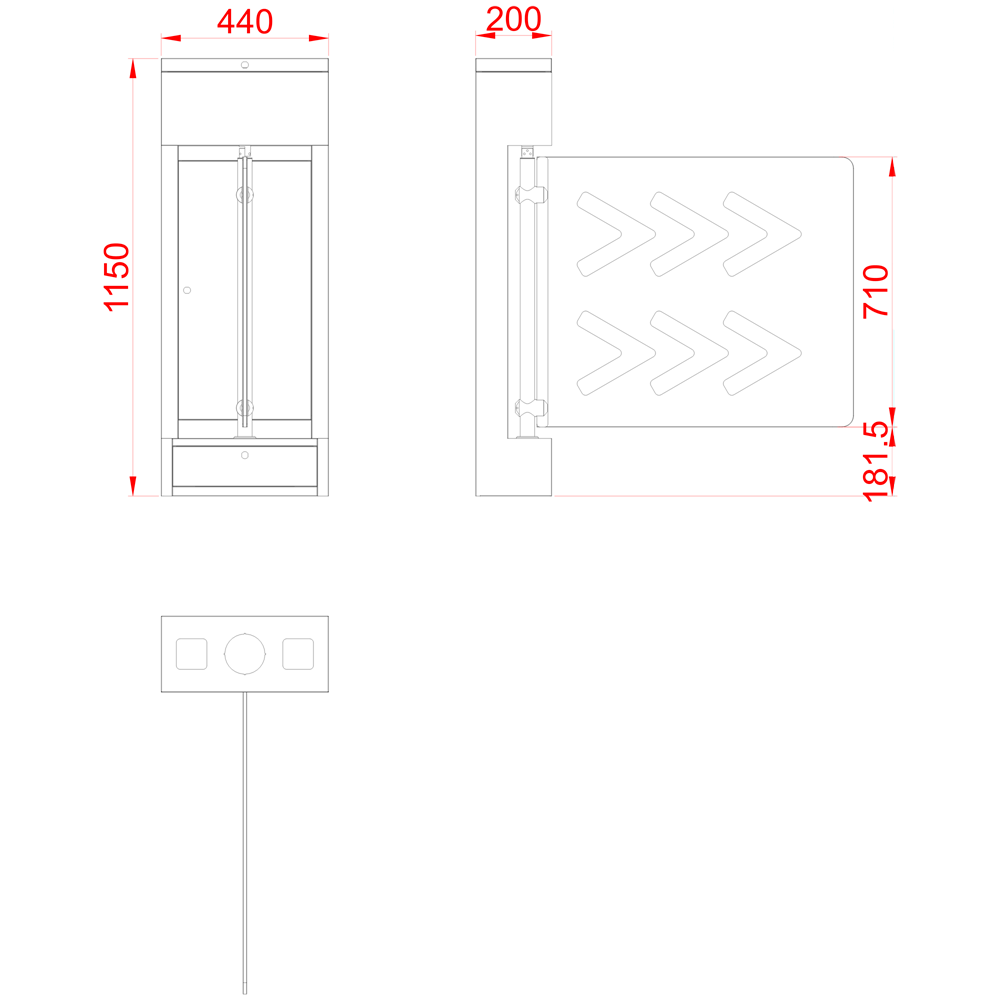

Dimensions	1150 (H) x 200 (W) x 440 (D) mm
Weight	35 kg
Protection	Indoor

Motorized port turnstile
Mounting material
User instructions
Security keys
