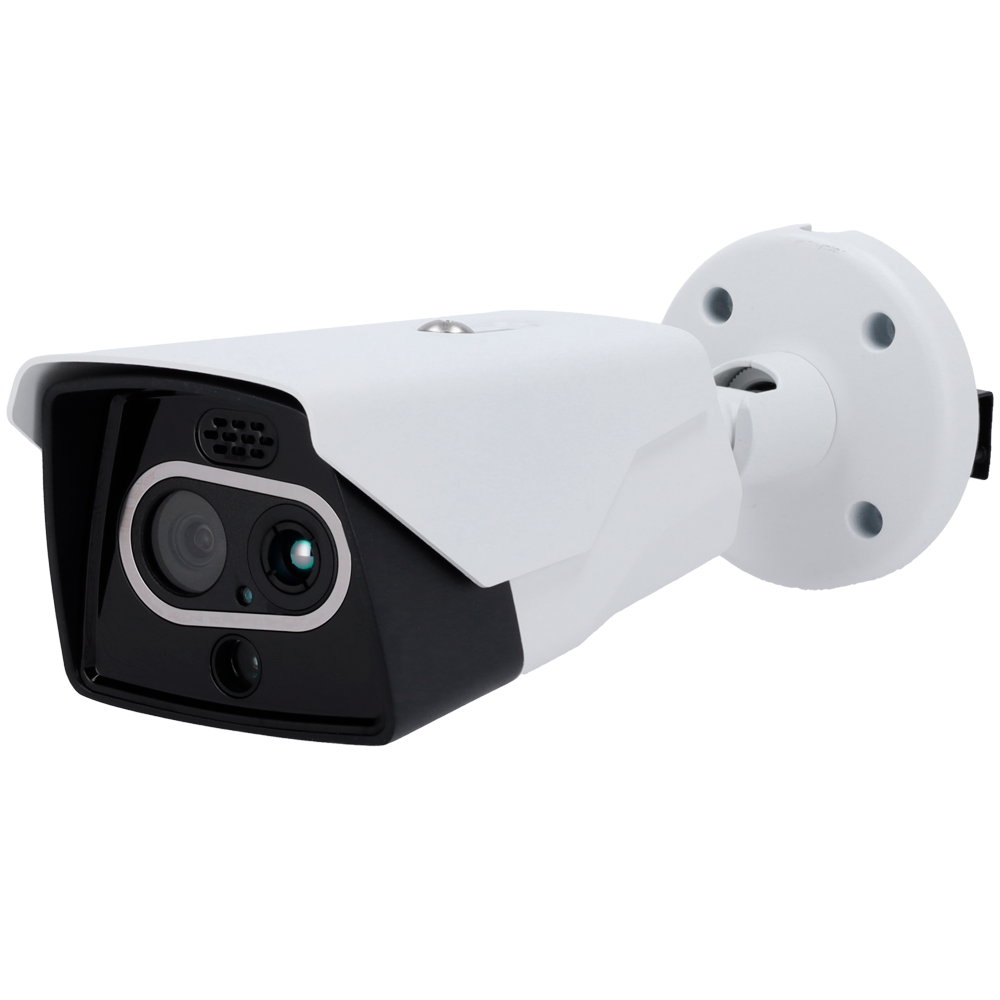

Thermtec IP thermal camera HM2 series - VOx FPA thermal sensor 256x192 12μm |Lens 10mm - Visible 1/2.8" CMOS sensor 4Mpx Lens 8mm - Thermal sensitivity ≤35mK - Temperature measuring range -20ºC~150º/±8ºC - Temperature measurement, fire detection, VCA

SKU: THERMTEC-HM210

4.912.50 kr

Ekskl. moms

Udsolgt

Brand	Thermtec
Range	HM2
Thermal sensor	VOx FPA non-refrigerated
Thermal sensor resolution	256 x 192
Pixel pitch	12μm
Thermal lens	10mm
Thermal sensitivity	≤35mK
Thermal measurement range	-20ºC~150ºC / ±2ºC
Spectral range	LWIR 8~14μm
Thermal viewing angle	17° (H) x 13° (V)
Visible sensor	1/2.8" Progressive Scan CMOS
Visible sensor resolution	2592 x 1536 (4Mpx)
Visible lens	8mm
Infrared illuminator	20m. maximum
Main Stream rate	Visible: 25fps (2592×1536, 1920×1080, 1280x720) Thermal: 25fps (768x576, 640x480, 384x288, 352x288)
Sub Stream Rate	Visible: 25fps (1280x720, 768x576, 640x480, 352x288, 256x192) Thermal: 25fps (768x576, 640x480, 384x288, 352x288)
Compression	H.265 / H.264
VCA	Motion detection, line crossing, intrusion, area entry/exit Fire detection and temperature measurement
Temperature rules	Point, line and area, multiple rules simultaneously
Alarms	1 input / 1 relay
Network interface	Ethernet 10/100 BaseT
Remote access	Web browser, Thermtec VMS software
Interoperability	ONVIF, API, SDK
Power	DC 12V, 3W max. PoE IEEE802.3af
Temp. operation	-20ºC~+75ºC, <95% RH
Grado de protección	Impermeable IP66 TVS 6000V protección rayos
Dimensiones	277mm × 92mm × 90mm
Peso	≤1.6Kgr
