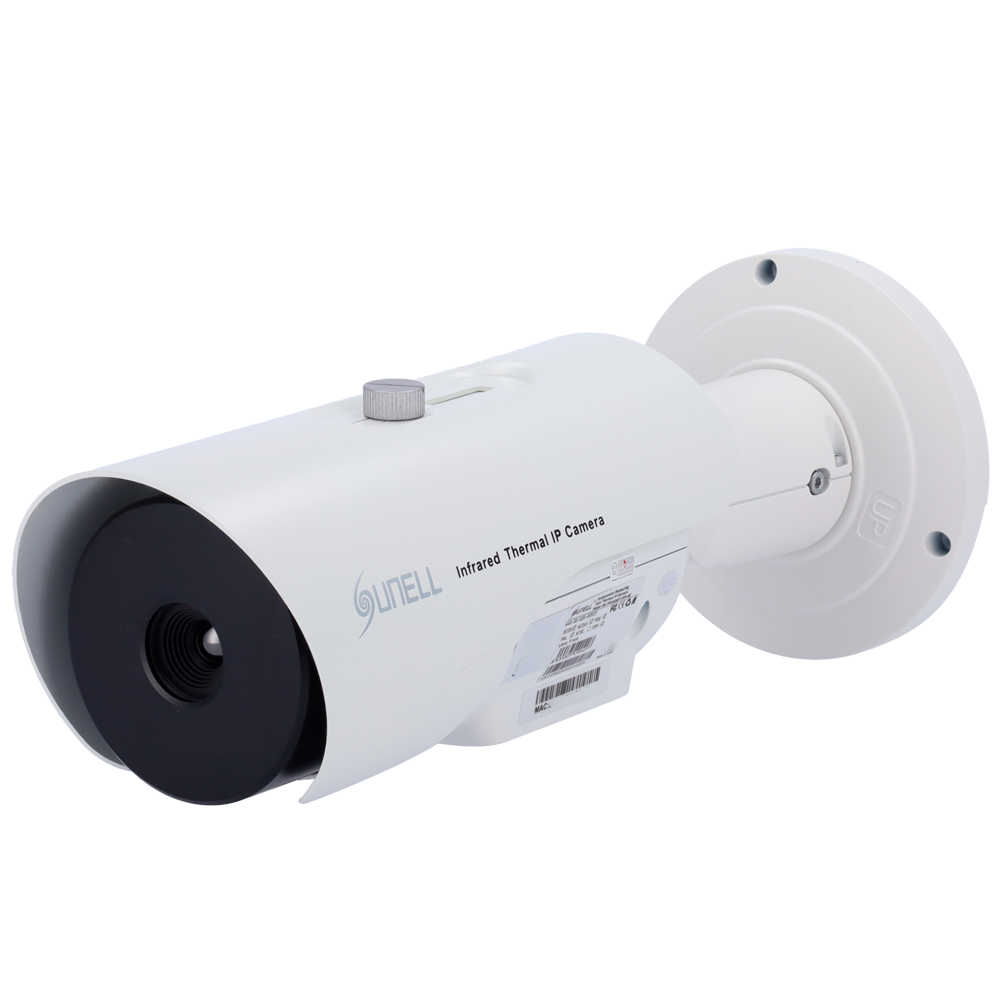

Sunell IP Thermal Camera - 640x512/12µm VOx | lens 25mm - Thermal sensitivity ≤40mK - Accuracy ±2ºC / ±2% - Temperature, human and vehicle detection - NDAA Certification - NEMA 4X

SKU: SN-TPC6406KT-F25-NE

2.898.94 kr

Ekskl. moms

På lager

Sunell IP Thermal Camera - 640x512/12µm VOx | lens 25mm - Thermal sensitivity ≤40mK - Accuracy ±2ºC / ±2% - Temperature, human and vehicle detection - NDAA Certification - NEMA 4X

Brand	Sunell
Thermal sensor	640x512/12µm VOx
Main Stream rate	1280x1024, 1280x720, 640x512 (25fps)
Extra Stream rate	640x512, CIF (25fps)
Compression	H.265 / H.264
Pixel Size	12µm
Lens	25 mm
Viewing angle	17º x 14º
Focus	Free focus
Thermal sensitivity	≤40mK
Spectral range	8~14µm
Pallets	Up to 17 modes (white hot, black hot, red hot, rainbow, etc.)
Intelligent functions	Temperature sensing, human and vehicle detection, ship detection
Range of Detectable Temperatures	-20ºC to 150ºC (from -4ºF to 302ºF))
Temperature Accuracy	±2ºC / ±2%
Temperature Measurement	Supports 3 rule types (point, area and line)
VCA ranges	Fire recognition: 0m Person recognition: 0m Vehicle recognition: 0m
Audio	1 input / 1 output
Alarm	2 inputs / 2 relay outputs
Internal memory	Micro SD card up to 256GB (not included)
Network interface	Ethernet 10/100M BaseT
Remote access	WEB interface, CMS (SunView), Smartphone and NVR
Interoperability	ONVIF & Private Protocol
Power	12VDC / 5W, PoE IEEE802.3af
Temp. operation	-40ºC ~ +60ºC
Degree of protection	IP66 NEMA 4X
Material	Metallic
Dimensions	387,6mm x 120,5mm (Ø)
Weight	1850g
Certificates	NDAA / CE / FCC
