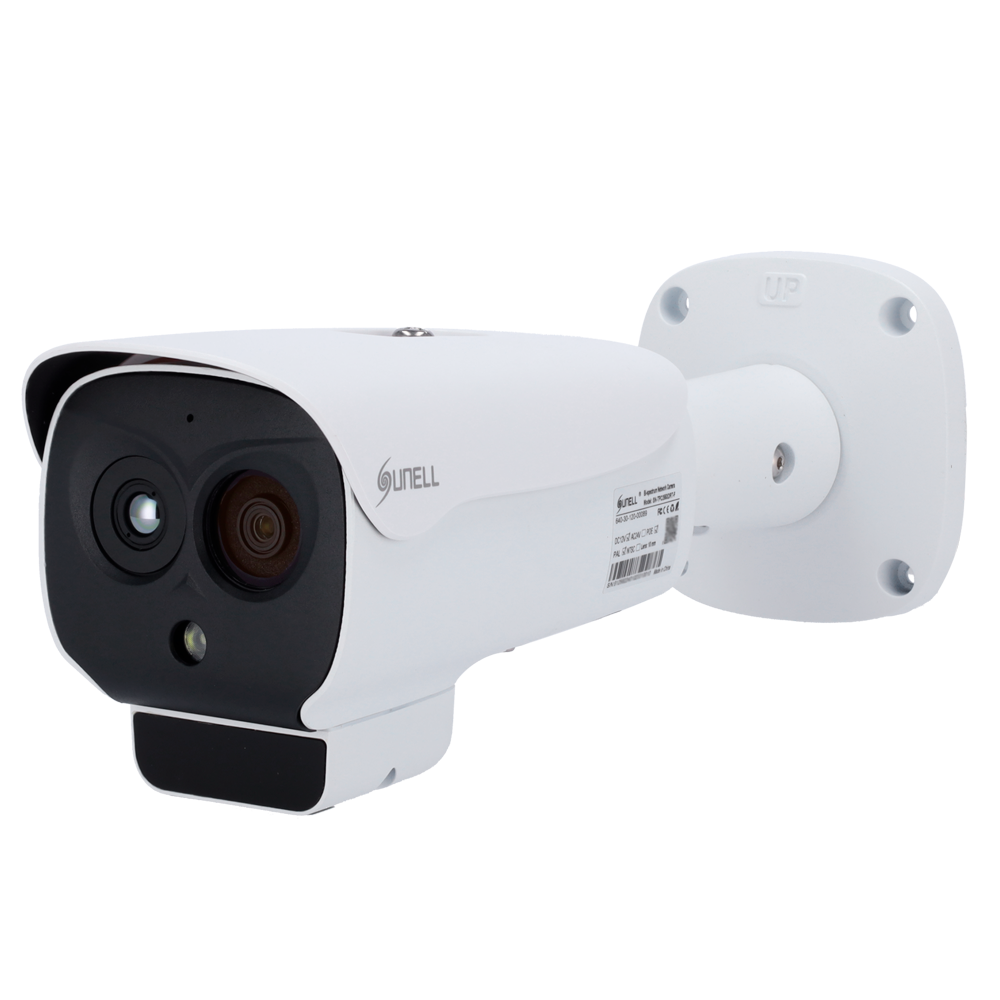

Sunell Dual IP bullet thermal camera - 256x192 VOx | 7mm Lens - Optical sensor 1/2.7” 4 MP | Lens 8mm - Thermal sensitivity ≤50mK - Preventive fire detection and alarm - Measuring range temp -20º~150ºC / ±2ºC

SKU: SN-TPC2553DRT-F07

4.481.25 kr

Ekskl. moms

Udsolgt

Brand	Sunell
Thermal sensor	256x192 Vanadium Oxide
Optical sensor	1/2.7” Progressive Scan CMOS 4 Megapixel
Main Stream rate	704×576 (1~25FPS) Thermal 2880x1620, 2560x1440, 2304x1296, 1920×1080, 1280×720 (1~25FPS) Optical
Extra Stream rate	D1, CIF, 256x192 (1~25FPS) Thermal D1/VGA (1~25FPS) Optical
Compression	H.265 / H.264 / MJPEG
Lens	7mm (Term) / 8mm (Opt)
Range performance	Human: 291 m. (D) / 73 m. (R) / 36 m. (I) Vehicle: 894 m. (D) / 224 m. (R) / 112 m. (I)
VCA ranges	Human detection: 65 m. Vehicle detection: 144 m. Temperature measurement (0.2x0.2m): 23,3 m. Temperature measurement (1x1m): 116,7 m. Fire detection (0.2x0.2m.): 83,3 m. Smoking detection: 25 m.
Viewing angle	24°×18° (Term) / 40°×20° (Opt)
Thermal sensitivity	≤50mK (0.06ºC)
Thermal measurement range	-20 ~150ºC / ±2ºC
Spectral range	LWIR 8~14μm
Pitch detector	12μm
VCA	Up to 9 VCA rules (single line crossing, double line crossing, intrusion, loitering, wrong direction, area entry and exit, intelligent motion detection, people counting)
IR range	Up to 50 m.
Sound/light alarm	Supports white light flash
Temperature rules	Up to 20 rules (points, areas and lines)
Audio In/Out	1/1
Alarm In/Out	2/2
Internal memory	Micro SD card up to 256GB
Network interface	Ethernet 10/100 BaseT
Remote access	WEB interface, CMS (SunView), Smartphone and NVR
Interoperability	ONVIF
Power	12VDC/24VDC, max.12W; PoE IEEE802.3af, max.12W
Temp. operation	-40ºC ~ +60ºC
Degree of protection	Weatherproof IP66
Dimensions	φ303 × 95 × 107 mm.
Weight	1.350 g.
