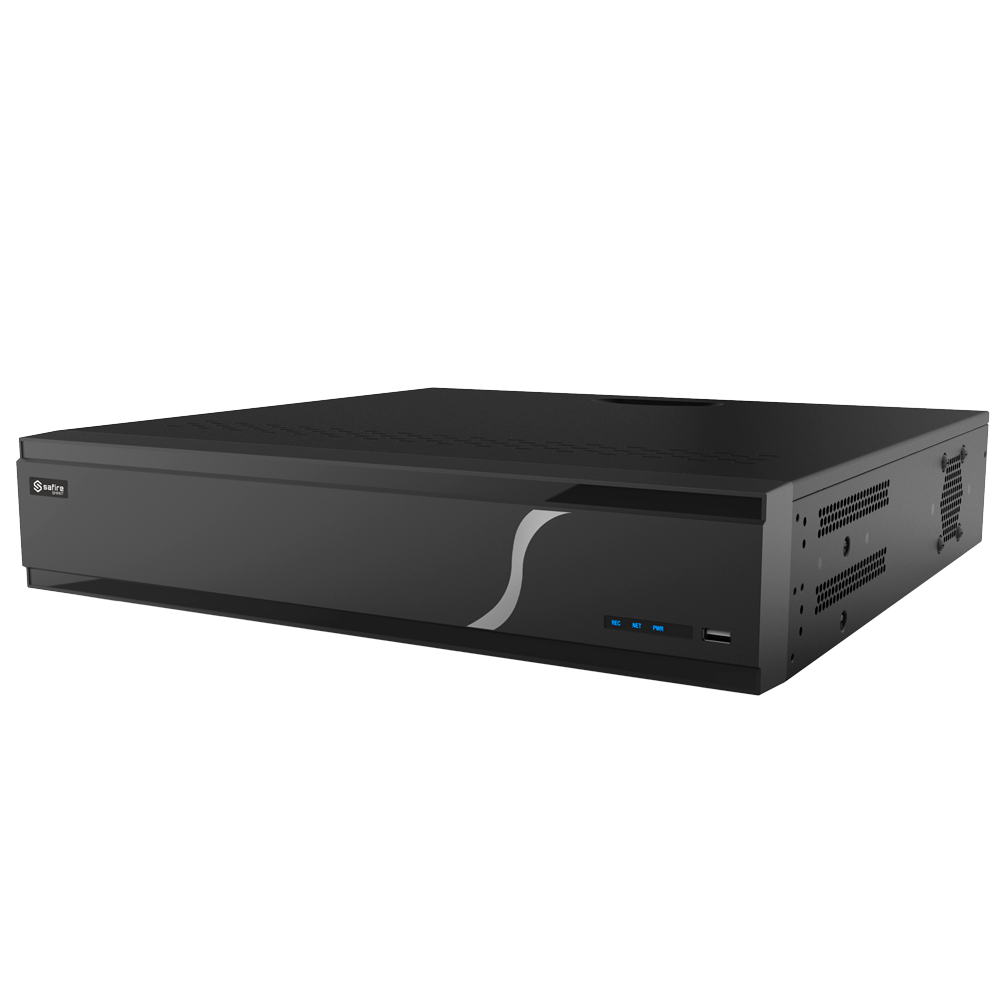

Safire Smart - NVR recorder for IP cameras - A3 range - 32CH video / H.265S Compression / 8HDD - Up to 16Mpx Resolution / 320 Mbps Bandwidth - 2 x HDMI 4K and VGA / Dewarping Fisheye - Facial recognition, Video metadata

Brand	Safire Smart
Range	A3
Inputs for IP cameras	32CH IP
IP compatible cameras	Safire Smart (native protocol), ONVIF
Bidirectional audio	1 input / 1 RCA output
Main Stream recording	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/960H/D1/CIF
Decoding capacity	No AI Mode: 4×16MP@30fps, 9×6MP@30fps, 16×4MP@30fps AI mode: 4×12MP@30fps, 9×5MP@30fps, 16×3MP@30fps
Video compression format	H.265+ / H.265 / H.264+ / H.264
Audio Compression	G.711(U/A)
Total bandwidth	320 Mbps downstream / 256 Mbps upstream
Video outputs	2 HDMI 4K / 1 VGA
Display resolution	HDMI1: 3840×2160@60 3840×2160@30 1920×1080 1280×1024 1024×768 HDMI2: 3840×2160@60 3840×2160@30 1920×1080 1280×1024 1024×768 VGA×1: 1920×1080 1280×1024 1024×768 *VGA and HDMI 1 are simultaneous
Yesmultaneous multifunction	Pentaplex: Live, Recording, Playback, Backup and Remote Access
Multi-Screen	Main output: : 1/4/6/8/9/13/16/25/32/36 Secondary output: 1/4/6/8/9/13/16
Recording method	Manual, programmed, motion detection, smart events, alarm input, POS
POS Function	Si
Perimeter Protection	Artificial Intelligence based on the classification of humans and vehicles on the basis of: - Area intrusion - Line crossover - Region entry - Exit region Detailed searches for intelligent events
Facial recognition	Face detection with Safire Smart cameras 4I1 or 8I2 up to 32CH (All channels) Face detection by the NVR itself with any camera up to 4CH Facial recognition up to 16CH max Computation of up to 36 images / second 32 Libraries and up to 10000 face images Image searches via recorder, APP and PC software Face tracking on map or plan Statistical information on face results by day, week, month or customized period
Video metadata	Need to use Safire Smart 4I1 or 8I2 cameras Human and vehicle feature extraction
License plate recognition	Yes (Safire Smart license plate camera required)
Dewarping	Supports Fisheye camera dewarping
Alarms	16 Inputs / 4 Outputs
External Backup	USB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory	8x 3.5" HDD SATA3.0 up to 10 TB (not included)
E-SATA interface	2 x e-SATA
RAID	RAID0, RAID1, RAID5, RAID6 and RAID10
Communication	1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/100/1000M (Ethernet) / RS485
Remote access	Web Browser, Safire Smartphone App and PC Software Safire Smart VMS
Power	ATX200 ≤ 30W (Without hard disk)
Operating temperature	-10ºC ~50ºC, Humidity 10~90%
Dimensions / Weight	90 (H) x 445 (W) x 436 (D) mm / 1.18 Kg
