Safire - SMC polyester cabinet - Outside dimensions 60x50x23cm - 8 ports switch [%VAR%] Fiber fusion tray - Management and maintenance platform - Degree of protection IP55 / DIN rail / UPS

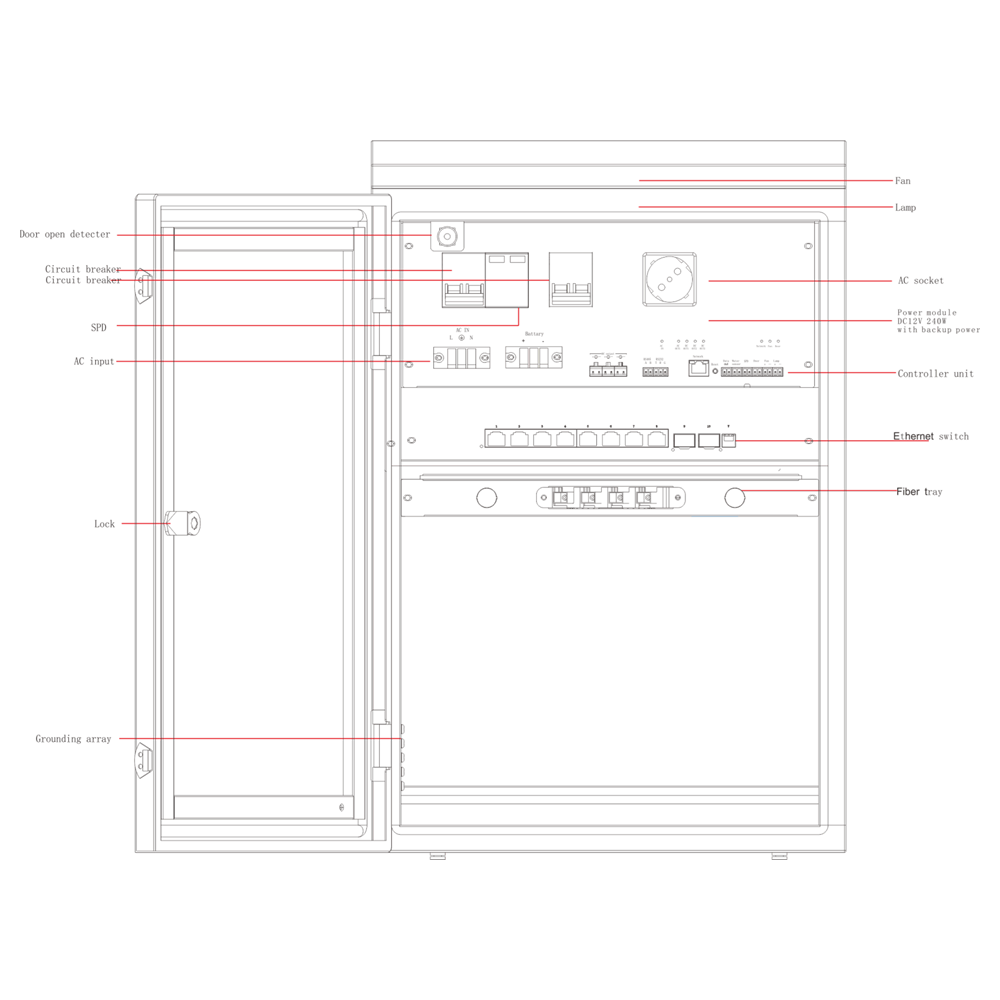

Intelligent switch cabinet with the possibility of connecting an AGM backup battery of 12 volts. Free monitoring software, 8 port switch, 3 12V 3 amps per port and fiber patch panel. Door sensor with automatic LED internal illumination and double locking. DIN rail for attachment of additional devices

Safire
Polyester cupboard
AC input 220V
Output 12V
Switch 8 ethernet ports
EU plug
Alarm input
Intelligent controller with network connection
Monitoring and management software
Adjustable DIN rail
Ventilation filter
UPS, for backup battery installation
Door tamper
Lighting for night maintenance
White colour
Dimensions 60x50x23
Degree of protection IP55

Brand	Safire
Type	Polyester cabinet with switch and power supply included
Security	Double key lock
Power supply input	AC 100~240V, 50/60Hz
Fiber fusion tray	x4 SC UPC
Plug	Yes, European type F
AC output	1x AC output remotely controlled via software. The management software supports voltage and current value control
DC output	3x 12V DC, Max. 240W (between the 3 outputs)
Fan	1x 12V DC
Light	DC 12V Internal Led for night maintenance. Lights up when the door is opened
Door sensor	Yes
Contactor	AC 2P16A, installed on din rail
Surge protection	AC protection, 385 V AC @ 20 KA 2P, -40 ~ 70 ℃ Rated discharge current 20 KA (8/20 μS), Maximum discharge current 40 KA (8/20 μ S) Restricted voltage ≤ 1,8 KV, with remote alarm function in software
Ethernet Switch	1~8 10/100/1000M Base-T RJ45 9~10 1000M SFP
Serial port	RS485 / RS232
Alarm input	3 inputs, dry contact *Input 1 used by default for the door contact
Management software	Yes
Management controller	Reset button 1x RJ45 10/100M Baste-TX 8 status LED indicators
Material	SMC (fiberglass-reinforced polyester resin)
UPS	Yes (Backup battery installation of 12V)
Working temperature	-20℃~70℃
Storing temperature	-40℃~85℃
Humidity	0~90% no condensation
External dimensions	600 (H) x 500 (W) x 230 (D) mm
Colour	White
Net weight	15Kg

Polyester cupboard
Installation material
Din rail
