Reyee - Wi-Fi Omnidirectional AP 7 Triple radio - 2.4, 5 , 6ghz Frequencies - Supports 802.11a/b/g/n/ac/ax/be - Transmission speed up to 13657 Mbps - Antennas 2x2 in 2.4GHz, 3x3 in 5GHz, 3x3 in 6Ghz
SKU: RG-RAP73Pro
Ekskl. moms
Reyee - Wi-Fi Omnidirectional AP 7 Triple radio - 2.4, 5 , 6ghz Frequencies - Supports 802.11a/b/g/n/ac/ax/be - Transmission speed up to 13657 Mbps - Antennas 2x2 in 2.4GHz, 3x3 in 5GHz, 3x3 in 6Ghz

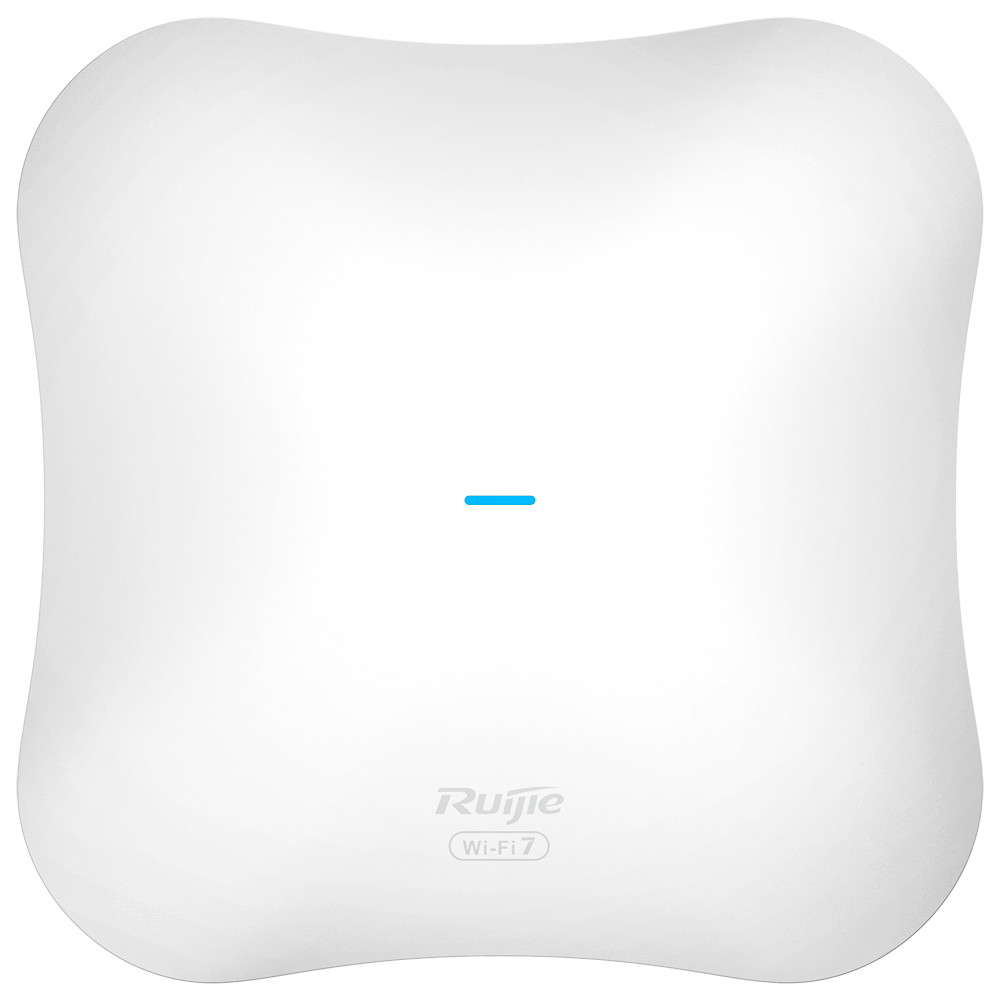

The RG-RAP73PRO is a high-performance Wi-Fi 7 access point designed to provide fast, reliable and wide coverage connectivity. It is ideal for corporate environments, offices or areas with high user density.
Among its main features are Wi-Fi innovations 7:
MLO: allows simultaneous use of the 2.4 GHz, 5 GHz and 6 GHz bands, improving speed and stability.
320 MHz channels, twice the bandwidth of Wi-Fi 6, for greater data capacity.
4K-QAM, which increases the amount of data transmitted per symbol compared to 1024-QAM of Wi-Fi 6.
Optimized use of the spectrum thanks to the Puncturing technique, which takes advantage of free parts of an occupied channel.
Compatibility with Wi-Fi 5 and Wi-Fi 6, devices ensuring a smooth transition for existing networks.
- Reyee
- Wi-Fi access point 7 802.11be tri-band 2,4, 5 and 6ghz
- Compatible with 802.11a/b/g/n/ac/ax/be
- Up to 688Mbps in 2.4GHz, 4323Mbps in 5GHz and 8646Mbps in 6GHz
- MIMO technology 2x2 at 2.4 GHz , 3x3 at 5 GHz , 3x3 at 6 GHz
- Antennas 2.4GHz 3.6dBi, 5GHz 5.9dBi, 6GHz 5.2dBi
- Channel width up to 320MHz
- 1 2,5Gbps RJ45, 1 SFP+ Port
- Temperature range from 0 to 40 ºC
- PoE power 802.3at (suggested 802.3bt) or DC 54 V/0.55 [%VAR%] A
| Brand | Reyee |
| Wireless standard | Wi-Fi 7 802.11BE |
| Frequencies | 2.4 GHz, 5GHz, 6GHz |
| Wi-Fi performance | Up to 688Mbps in 2.4GHz Up to 4323Mbps in 5GHz Up to 8646Mbps in 6GHz |
| Integrated antenna | 2x2 MIMO in 2.4 GHz 3.6dBi 3x3 MIMO in 5 GHz 5.9dBi 3x3 MIMO in 6 GHz 5.2dBi |
| WiFi Technologies 7 | MRU (Multi-Resource Unit) MLO (Multi-Link Operation) WIO 2.0 (Wi-Fi Intelligent Optimization) 4K-QAM (Last generation modulation) |
| SSID | Up to 8 |
| Operating modes | Wireless access point Routers with basic functions Compatible with Reyee AP Mesh |
| Routing | Static IP, DHCP Server, PPPoE, NAT |
| Security | Isolated Wireless Clients, Block and Allow List. Authentication: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA/WPA2-Enterprise, OWE, WPA3-SAE, WPA2-PSK/WPA3-SAE |
| Management | Configuration via web or remote interface with Ruijie Cloud |
| Interface | 1 Port 2,5Gbps (2,5GBase-T) RJ45 1 10Gbps SFP+ Port |
| Functionalities | 802.1Q VLAN Port-based VLANs 802.11k/v/r, L2/L3 Roaming, AI Roaming Authentication 802.1X |
| Power | PoE+ 802.3at 30W Suggested Hi-PoE 802.3bt (60W) DC 54 V/0.55 A |
| Maintenance and Diagnostics | Collection of failures in one click Active alarm for DHCP server conflicts Packet sniffing SNMP V1, V2c, V3 |
| Network technologies | RLDP DHCP snooping Wireless flow control (WQoS) Load balancing between access points Same SSID for different VLANs |
| Operating temperature | 0 °C ~ 40 °C |
| Dimensions | 220 mm × 220 mm × 45mm (Without anchorage kit) |
| Weight | 1,1 Kg (excluding mounting kit) |
- Access Point
- Installation guide
- Mounting Anchors
