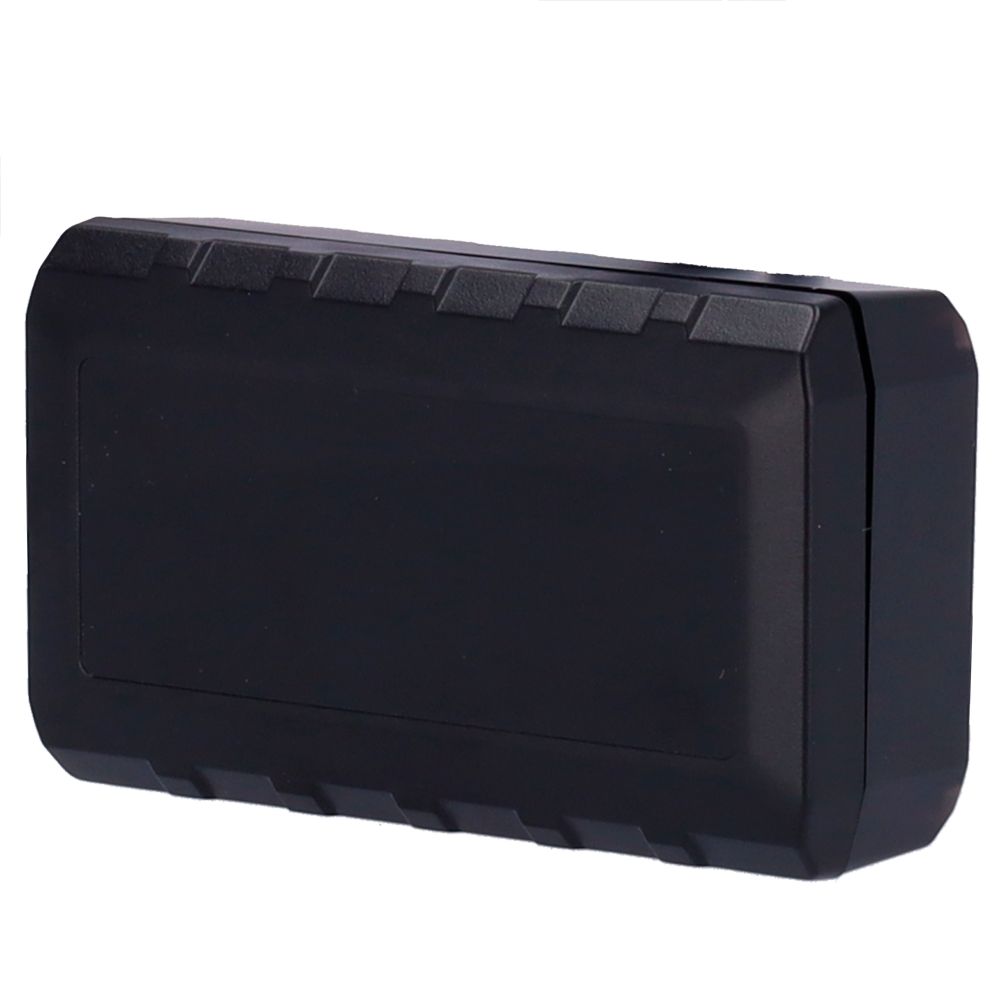

Compact waterproof GPS tracker IP67 - LTE Cat M1/NB2 with battery back up - BLE support 5.1 - Duration 10 months at rest - Zero consumption
SKU: QL-GV57MGPLUS
Ekskl. moms
Compact waterproof GPS tracker IP67 - LTE Cat M1/NB2 with battery back up - BLE support 5.1 - Duration 10 months at rest - Zero consumption
The GV57MGPLUS integrates LPWAN (low-power wide area network) standards, which effectively extends its coverage and makes it more convenient to deploy in a wide range of areas. Waterproof design ensures long-lasting reliability in harsh environments. And its basic digital I/O also offers flexibility in terms of use, allowing vehicle control and ignition sensing with ease. The GV57MGPLUS features zero power consumption and a large battery size, allowing owners to leave their cars and motorcycles unattended for extended periods of time without worrying about a dead battery. The product is ideal for various scenarios including, but not limited to, stolen vehicle recovery, asset monitoring and other basic tracking applications.
- Queclink
- Compact waterproof GPS tracker
- LTE Cat M1/NB2 with 2G back-up
- Large backup battery with up to 10 months standby time
- BLE support 5.1
- zero consumption
| Brand | Queclink |
| Model | GV57MGPLUS |
| Installation | Vehicle internal wiring connection |
| Operating band | LTE-Cat M1/NB2 Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 |
| LTE data transmission | eMTC (DL) 348 Kbps sMTC (UL) 1.08 Mbps NB2 (DL) 121 Kbps NB2 (UL) 150 Kbps NB1 (DL) 74.1 Kbps NB1 (UL) 101 Kbps |
| Frequency | 850/900/1800/1900 MHz |
| GSM data transmission | GPRS multi-slot class 33 (33 by default) EDGE multi-slot class 33 (33 by default) |
| GNSS type | All-in-one receiver |
| Sensitivity | Autonomousus: -148 dBm Hot start: -163 dBm On the move: -165 dBm |
| Positioning accuracy (CEP) | Autonomo: < 2.0m |
| TTFF (open field) | Cold start: 31 seconds approx Intermediate start: 28 seconds approx Hot start: 1 second approx |
| Dimensions | 84(LA) x 50(AN) x 26.6(AL) |
| Weight | 132g |
| Backup battery | Lithium polymer, 2600 mAh |
| Battery life | No report - 300 hours Reporting each 5min - 180 hours Reporting each 10min - 210 hours |
| Power | 8V to 32V DC |
| Working temperature | -30ºC ~ +80ºC |
| BLE | BLE protocol support 5.1 |
| Digital inputs | x1 positive trigger input for power-on detection |
| Cellular antenna | Internal only |
| GNSS Antenna | Internal only |
| BLE antenna | Internal only |
| LED indicators | CEL, GNSS |
| Micro USB interface | To update and debug |
| Transmission protocols | TCP, UDP, SMS |
| Scheduled reports | Positioning and status based on time intervals, distance, mileage or combination of these parameters |
| Geo-fence | Geo-fence and parking alarm, supports up to 20 regions |
| Low battery alarm | Warns when the backup battery is low |
| Ignition report | Reports when the device is turned on |
| SOS Report | SOS panic button alarm |
| Driver behavior monitoring | Aggressive driving detection, including hard braking, acceleration, etc. |
| Configuration sabotage protection | Critical information such as server data is encrypted to prevent unauthorized access |
| Messages | Buffer to 10000 messages |
| Remote control | OTA control over digital outputs |
- Device
- Screws
