DAHUA

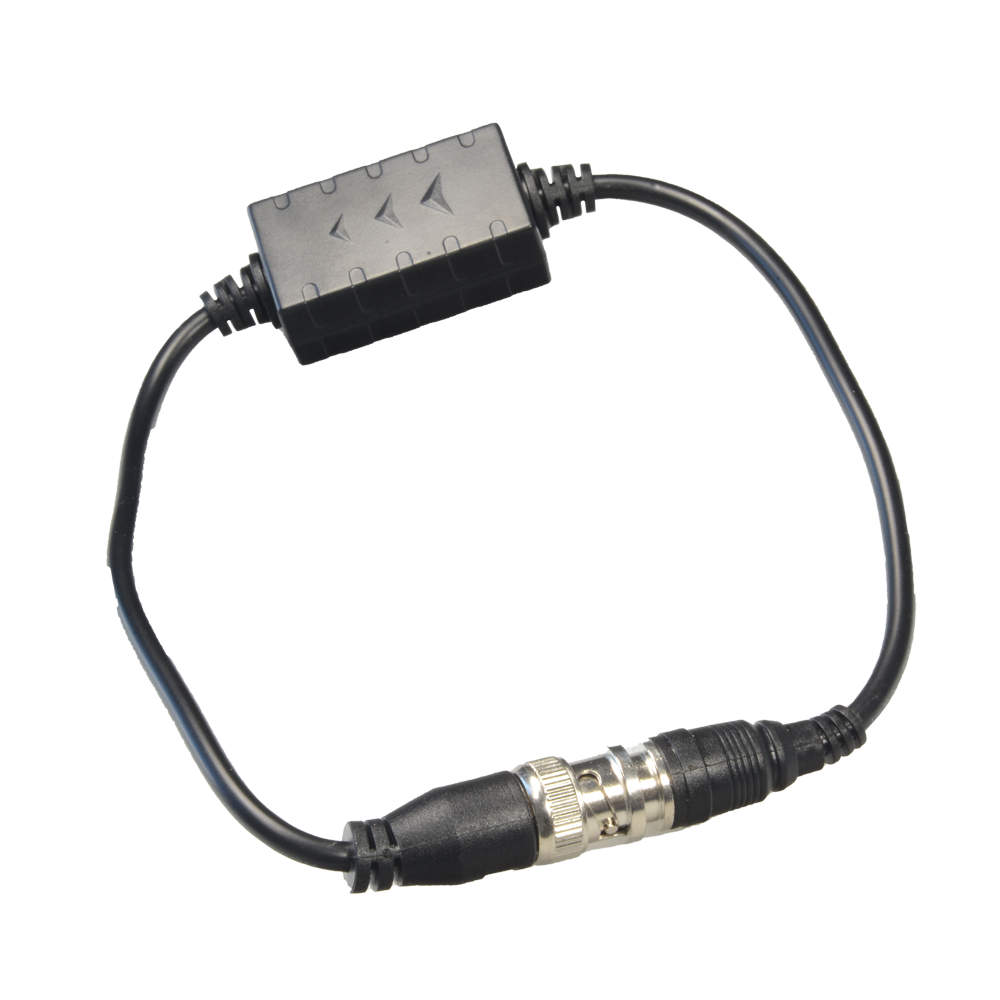

Power supply isolator - Optimised for HDCVI video - Installation on coaxial cable - Cable 400 mm long - Passive element - Frequency response 0-65MHz
SKU: PFM791
121.88 kr
Ekskl. moms
Udsolgt
Power supply isolator - Optimised for HDCVI video - Installation on coaxial cable - Cable 400 mm long - Passive element - Frequency response 0-65MHz
Kategori
Connectors
Mærke
DAHUA
- Ground loop isolator to eliminate interferences
- Optimised for HDCVI video
- For coaxial cable
- Passive
- No power supply required
| Input connection | BNC male |
| Output connection | BNC female |
| Insertion loss | 0.5dB |
| Frequency response | 0-65MHz |
| Input / output impedance | 75Ω / 75Ω |
| Voltage isolation | 800V |
| Isolation Resistance | 100MΩ |
| Cable Length | 400 mm |
| Power | Not required (passive) |
- Ground loop protection
