JADE BIRD

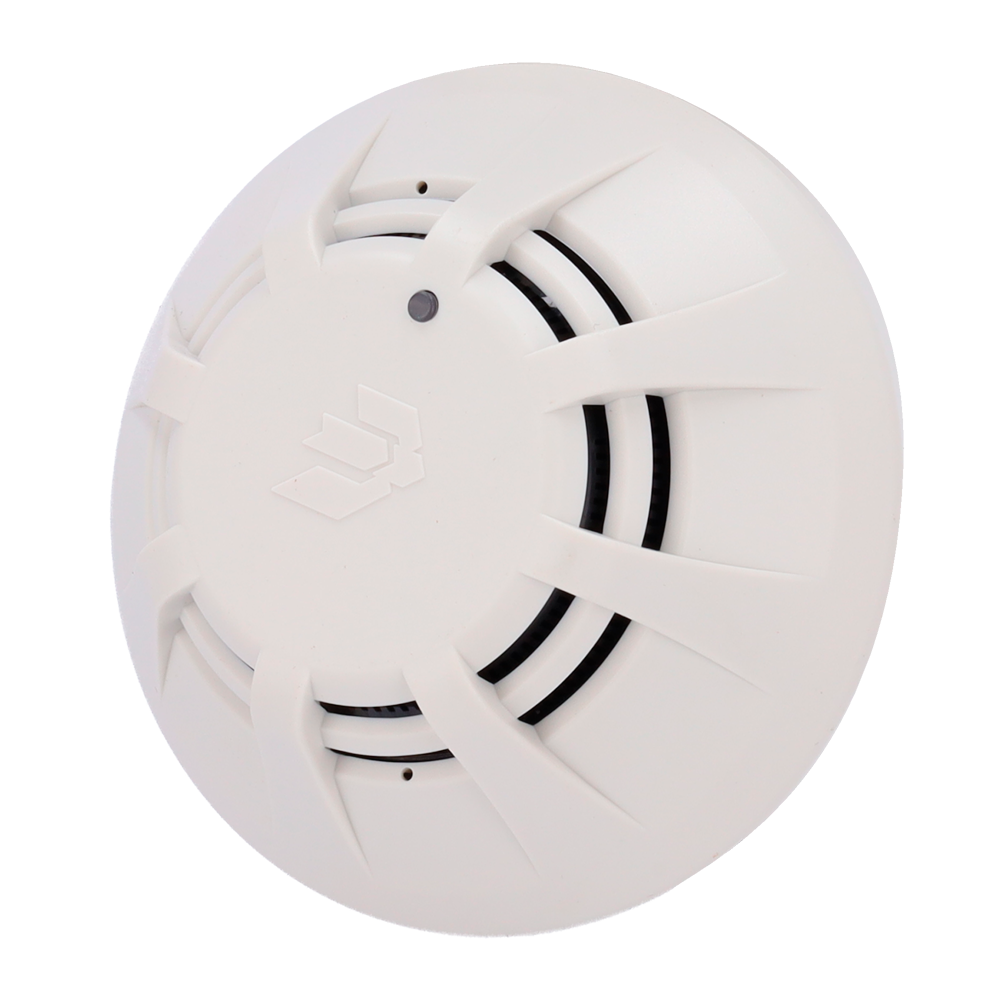

Jade Bird conventional optical detector - Adjustable sensitivity (3 levels) - Led with vision 360° - Remote indicator output - Base not included - Certified EN 54-7
SKU: JBE-2112
75.94 kr
Ekskl. moms
På lager
Jade Bird conventional optical detector - Adjustable sensitivity (3 levels) - Led with vision 360° - Remote indicator output - Base not included - Certified EN 54-7
- Jade Bird - Detector Óptico Convencional
- Adjustable sensitivity (3 levels)
- Led with vision 360°
- Base not included
- Compatible with BE-2165 base
- Remote indicator output
- Certified EN 54-7
| Brand | Jade Bird |
| Type | Optical Detector |
| Sensitivity | Adjustable in 3 levels |
| Operating voltage | 16-30 VDC |
| Connection | 2 wires |
| Wired | Twisted pair without mesh 0.5 - 2.5 mm² |
| Consumption in idle mode | ≤0.3mA @24 V |
| Consumption in alarm mode | ≤1 mA @24 V (up to 8 mA of remote indicator) |
| Temp. of work | -10 to +60ºC |
| Temp. storage | -20 to +60ºC |
| Humidity | ≤ 95% HR (40 ±2ºC) (no condensation) |
| Coverage | 60 to 80 m2 |
| Led indicator | Rest: Flickering Alarm: Fixed ignition |
| Dimensions (ØxH) | 100 mm × 46 mm |
| Weight | 0,1 kg |
| Protection Grade | IP40 |
| Supported bases | JBE-2165 for installation with or without remote indicator |
| Remote indicator | LED with or without series resistor (R <4KΩ) |
| Certificado | EN 54-7:2018 |
- Detector convencional Jade Bird
