JADE BIRD

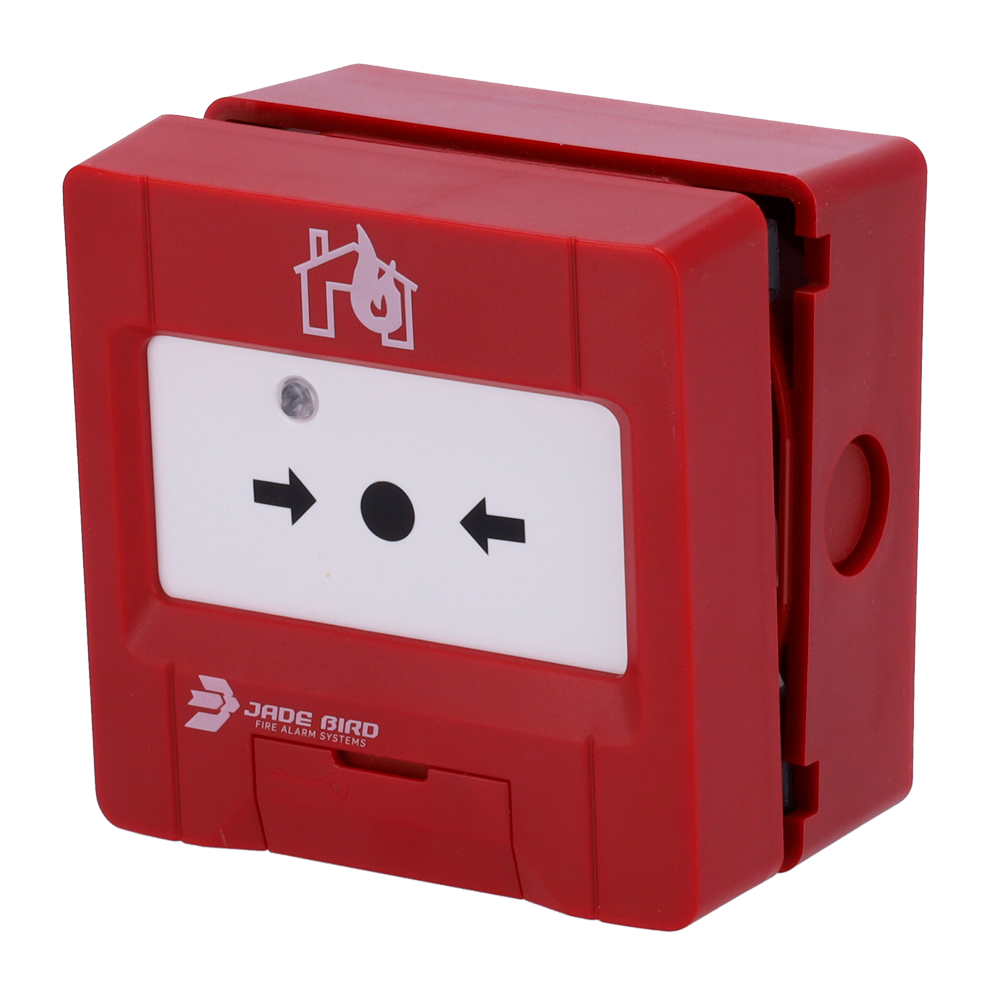

Conventional push button Jade Bird - Rearmable - Visual activation indicator - Auxiliary dry contact - Selectable alarm resistance 680/470 Ω - Certified EN 54-11
SKU: JBE-2101
93.75 kr
Ekskl. moms
På lager
Conventional push button Jade Bird - Rearmable - Visual activation indicator - Auxiliary dry contact - Selectable alarm resistance 680/470 Ω - Certified EN 54-11
Kategori
Push buttons
Mærke
JADE BIRD
- Jade Bird
- Conventional resettable push button
- Visual activation indicator
- Same key for opening and rearming
- Certified in EN54-11
- Auxiliary dry contact for local action or signal to third parties
| Brand | Jade Bird |
| Type | Manual resettable pushbutton |
| Operating voltage | 19-28 VDC (pulse width of JBE protocol) |
| Connection | 2 wires |
| Cable size | Twisted pair without mesh 0.5 - 2.5 mm² |
| Consumption in idle mode | ≤0.3 mA @24 V |
| Consumption in alarm mode | ≤1.0 mA @24 V |
| Dry contact | 0.1 A / 30 VDC |
| Temp. of work | -10ºC to 55ºC |
| Temp. of storage | -20ºC to 60ºC |
| Humidity | ≤ 95% RH (non-condensing) |
| Led indicator | Rest: Blinking with loop pooling Alarm: Fixed ignition |
| Dimensions (HxWxD) | 90 mm × 90 mm × 52 mm |
| Protection Grade | IP40 |
| Weight | 0,16 kg |
| Standard | EN 54-11 |
- Conventional pushbutton
