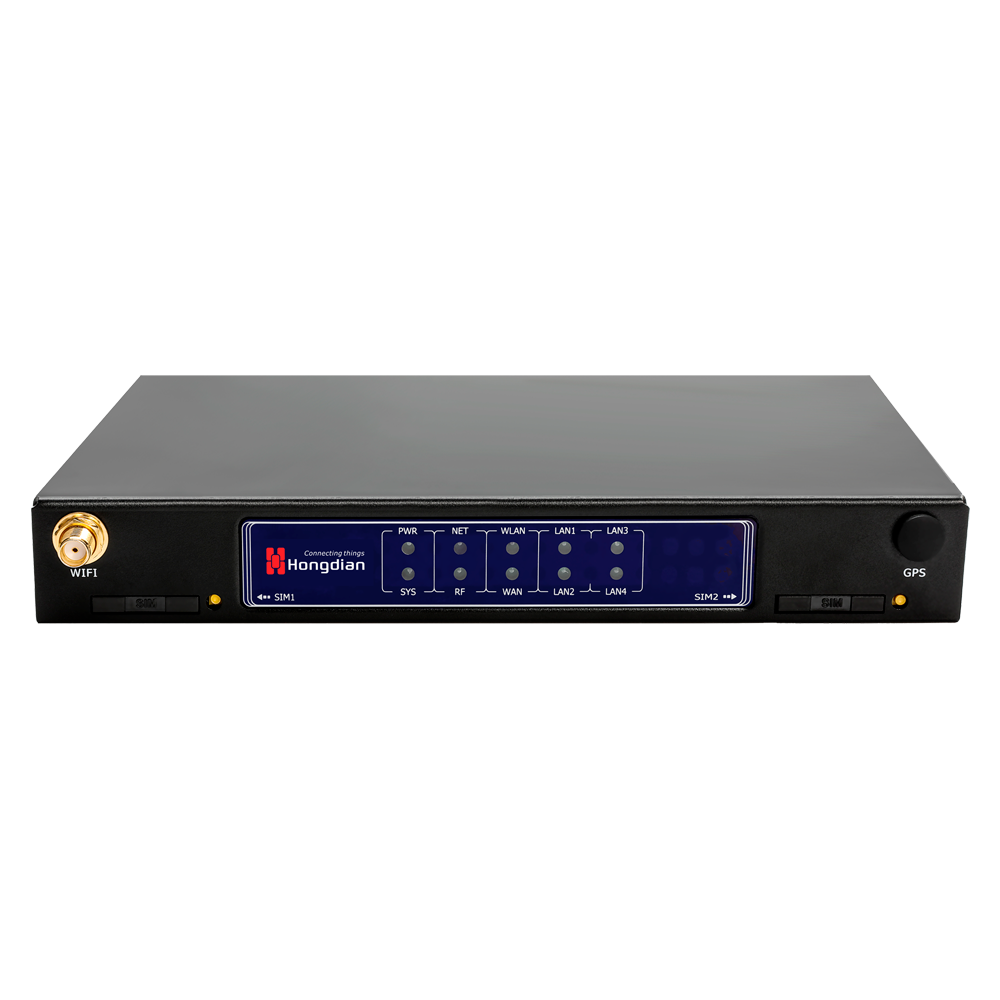

Hongdian Industrial Router 4G - 4G Cat 4 - 5 Ethernet ports RJ45 Fast Ethernet - Dual SIM Dual Modem - Ports RS232/RS485 - Wi-Fi 802.11b/g/n 2.4GHz

SKU: HG-H8922-D4EA-CS-W2

2.737.50 kr

Ekskl. moms

På lager

Hongdian Industrial Router 4G - 4G Cat 4 - 5 Ethernet ports RJ45 Fast Ethernet - Dual SIM Dual Modem - Ports RS232/RS485 - Wi-Fi 802.11b/g/n 2.4GHz

Brand	Hongdian
Device	Industrial 4G Router
SIM	2 SIM card slot 4G / 3G 2FF (not included)
Dual SIM	Auto Failover in case of low signal / data limit / roaming / no network
Serial Ports	Transparent, Modbus RTU Definition of ports: RX, TX, GND (RS-232) , A+, B-, GND (RS-485) Connector 6-pin 3.5 mm female socket Transmission rate RS-232 (300-115200bps), RS-485 (300-115200bps)
Wi-Fi	Wi-Fi 4 802.11b/g/n 2.4GHz
LTE Frequencies	4G(LTE-FDD): B1/B3/B5/B7/B8/B20 4G(LTE-TDD): B38/B40/B41 3G: B1/B5/B8 2G: B3/B8
Ethernet	5 Ethernet ports RJ45 10/100/1000Mbps (1 WAN + 4 LAN)
Antenna connectors	WiFi and LTE (antennas included)
CPU	MIPS 24Kc 580 MHZ
RAM	128MB DDR3
Flash	16MB
Network Protocols	PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP, ICMP, NAT, HTTP, HTTPs, HTTPs, DNS, ARP, NTP, Telnet, SSH2, DDNS, APN, VPDN, VLAN, QoS, Static Routing, Policy routing, RIP, OSPF,BGP,Failover.
VPN Protocols	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
Monitoring and Management	HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP
Security	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List, DDOS prevention, Anti port scanning
Power	DC connector 5~36V (Power supply 12V included)
Electricity consumption	Inactive: 200mA@12vDC Data Link: 550mA@12vDC
Material	Metallic
Degree of protection	IP30
Temp. operation	-30º C ~ +70º C
Operating humidity	≤ 95%(no condensing)
Installation	Wall or tabletop
Dimensions	25 (Al) x 176 (W) × 105 (D) mm
Weight	540 g
Region	Europe, Middle East, Africa, Korea, Thailand, India, Malaysia, India, Malaysia
