Signal extenders are equipment designed to carry a signal further than conventional cables allow, maintaining the original quality without losses. Its main function is to ensure that the communication between a transmitting device and a receiving device remains stable, even when the two are far apart.
Thanks to this technology, it is possible to connect equipment in meeting rooms, control centers, educational or entertainment facilities without worrying about the physical limitation of cables. In this way, the extenders provide installation flexibility, increased coverage and reliable transmission in all types of environments.
- Maximum length 50 metres
- Supports resolution 4K
- Allows 1 connections:4 (1 sender and 4 receivers)
| Maximum distance / Resolution | 50 m / 4K@60 Hz |
| WiFi | 5,18 - 5,24 GHz |
| HDCP | 2.2 |
| Connections | 1:M (1 transmitter and M receivers, maximum 4): 1:1 - 50 m / 4K@60 Hz 1:2 - 30 m / 4K@60 Hz 1:3 - 20 m / 4K@60 Hz 1:4 - 15 m / 4K@60 Hz |
| Power | Transmitter: DC 5 V / 2 A Receiver: DC 5 V / 2 A |
Transmitter | |
| Inputs | HDMI and micro USB |
| Outputs | HDMI, USB and IR |
| Dimensions | 115,00 (W) x 20,60 (H) x 125,00 (D) mm |
| Weight | 349 g |
Receiver | |
| Inputs | IR, Micro USB, USB Mouse and USB Keyboard |
| Outputs | HDMI |
| Dimensions | 115,00 (W) x 20,60 (H) x 125,00 (D) mm |
| Weight | 326 g |

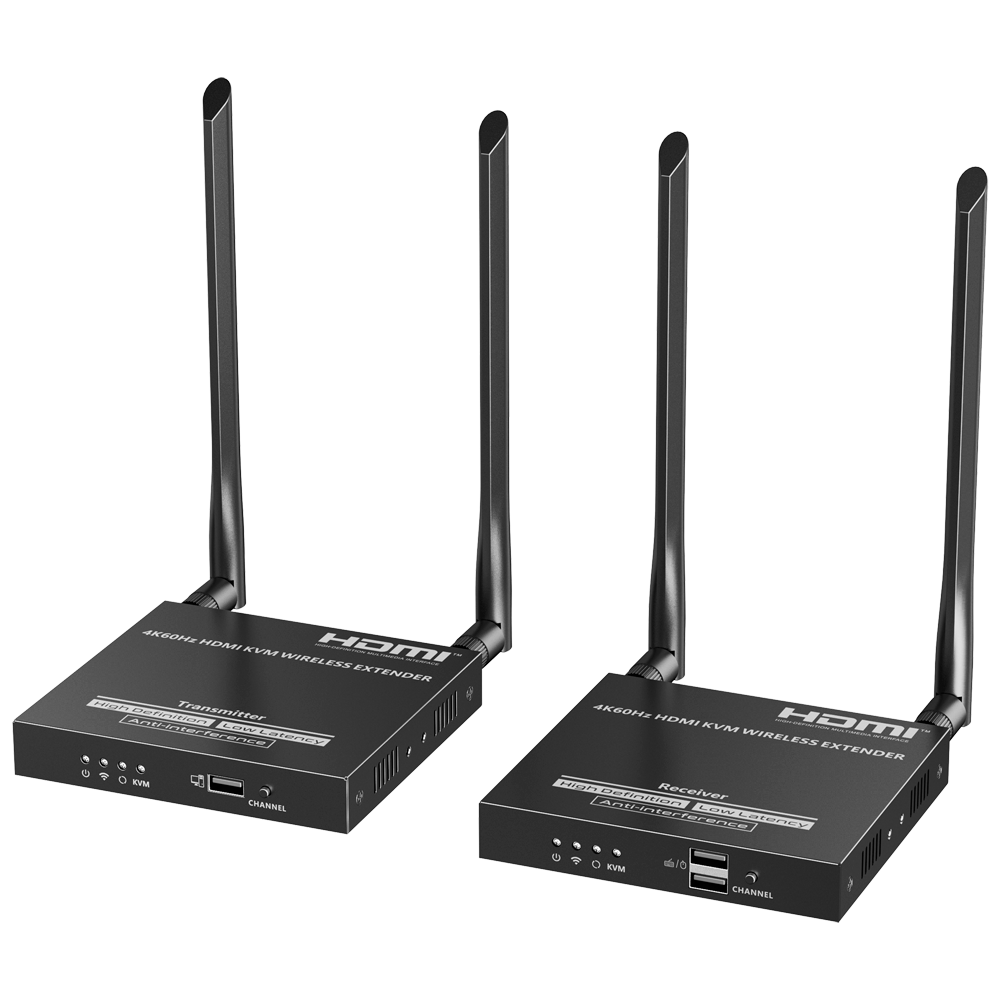

- Transmitter
- Receiver
- IR transmitter
- IR receiver
- USB Cable
- Antenna x4
- Mounting brackets x4
- Screws x10
- DC power supply 5 V / 2 A x2
- User manual
