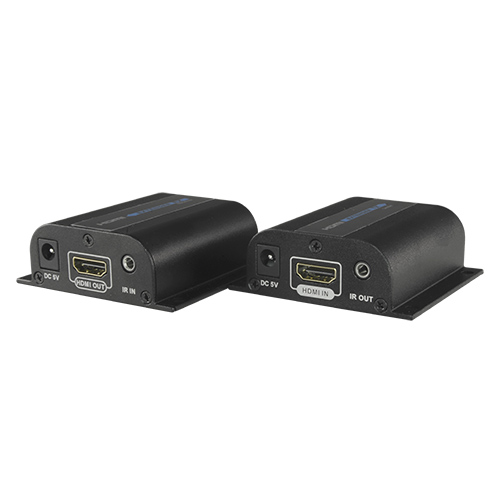

HDMI signal extender - Range 50 m - FHD resolution - Allows 1 connections:1
SKU: HDMI-EXT
Ekskl. moms
HDMI signal extender - Range 50 m - FHD resolution - Allows 1 connections:1
Signal extenders are equipment designed to carry a signal further than conventional cables allow, maintaining the original quality without losses. Its main function is to ensure that the communication between a transmitting device and a receiving device remains stable, even when the two are far apart.
Thanks to this technology, it is possible to connect equipment in meeting rooms, control centers, educational or entertainment facilities without worrying about the physical limitation of cables. In this way, the extenders provide installation flexibility, increased coverage and reliable transmission in all types of environments.
- Maximum length 60 metres
- Supports FHD resolution
- Allows 1 connections:1 (1 sender and 1 receiver)
| Maximum distance / Resolution | 50 m / 1080p@60 Hz |
| Extension cable | UTP Category 6 |
| Connections | 1:1 (1 sender and 1 receiver) |
| Power | Transmitter: DC 5 V / 500 mA Receiver: DC 5 V / 500 mA |
Transmitter | |
| Inputs | HDMI and IR |
| Outputs | Ethernet |
| Dimensions | 66 (W) x 24 (H) x 72 (D) mm |
| Weight | 83 g |
Receiver | |
| Inputs | Ethernet |
| Outputs | HDMI and IR |
| Dimensions | 66 (W) x 24 (H) x 72 (D) mm |
| Weight | 81 g |
- Transmitter
- Receiver
- IR transmitter
- IR receiver
- DC power supply 5 V / 500 mA x2
- User manual
