GJD

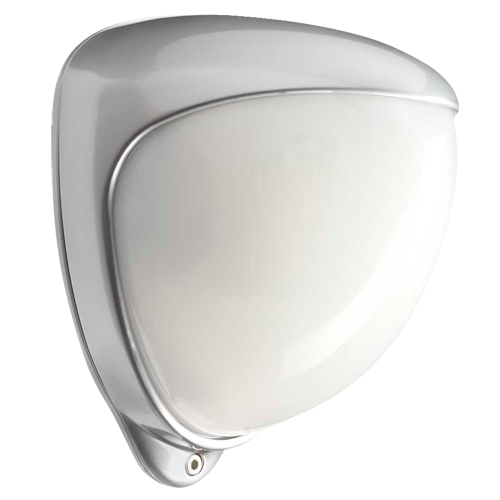

GJD Outdoor PIR Detector - PIR and Microwave / Pet Immune - Antimasking / Range up to 15 m - High quality material - Power supply 9~15 VDC - Outdoor use
SKU: GJD370
208.00 kr
Ekskl. moms
Udsolgt
GJD Outdoor PIR Detector - PIR and Microwave / Pet Immune - Antimasking / Range up to 15 m - High quality material - Power supply 9~15 VDC - Outdoor use
- GJD
- External detector
- Double technology: Microwave and double PIR with antimasking
- Adjustable detection range up to 15 m
- Coverage 70º
- Pet Immune up to 30 Kg
- Motion detection indicator
- Tamper-resistant opening
- Power supply 9~15 VDC
- Outdoor use
- Degree of protection IP65
| Brand | GJD |
| Technology | Double technology: Microwaves (10.525 GHz) and double volumetric PIR |
| PIR lens | 28 for each PIR |
| Detection range | Adjustable up to 15 m / 10~70º |
| Installation | Adjustable inclination: 180º H / 30º V |
| Installation height | Recommended: 1.8 m |
| Pet immunity | Available |
| Masking | Available |
| Tamper-resistant opening | Available |
| LEDs indication | Alarm, PIR, Microwave and Antimasking |
| DIP switch configuration | LEDs and impulse (1 counter or 2) |
| Wired outputs | NC/NO Alarm, Tamper and Antimasking |
| Power | 9 at 15 VDC |
| Average consumption | 8 mA at 12 VDC |
| Temp. operation | -20 ºC ~ 55 ºC |
| Degree of protection | IP65 |
| Covered material | High quality ABS plastic |
| Dimensions | 145 (H) x 120 (W) x 115 (D) mm |
| Weight | 740 g |
- Outdoor PIR Detector
- Instructions Manual
- Installation material
