Stationary battery - Capacity 5120Wh - LiFePO4 51.2V / 100Ah - 6000 life cycles - Up to 50 units in parallel - Compatible with most inverters
SKU: DY-DLC-5120
Ekskl. moms
Stationary battery - Capacity 5120Wh - LiFePO4 51.2V / 100Ah - 6000 life cycles - Up to 50 units in parallel - Compatible with most inverters

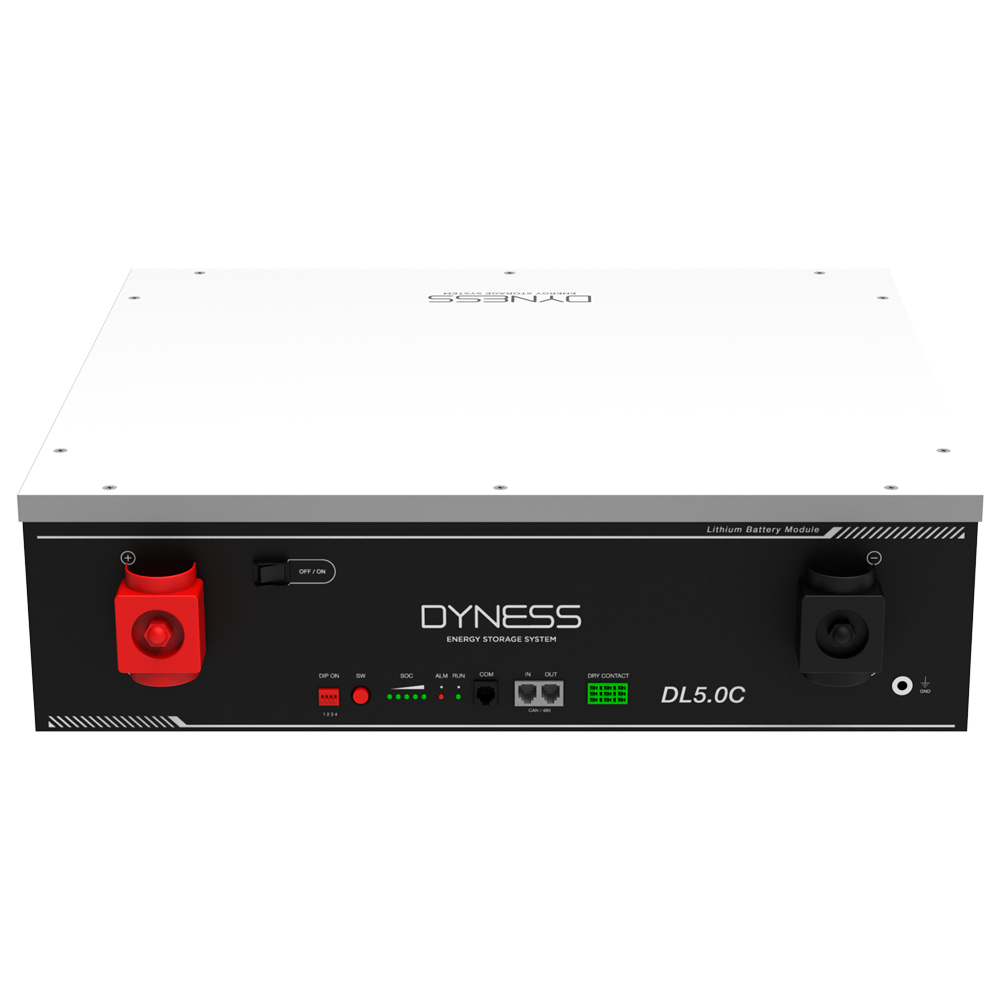

The Dyness DY-DLC-5120 battery is the best energy storage solution for residential environments, both grid-tied and off-grid. Its dual-cell design provides maximum reliability and extends battery life to 8000 cycles. With a unit capacity of 5.12 KWh, it can be adapted, in parallel, for applications with higher storage requirements.
It is a battery highly recommended for installers, since its design is simple and has the possibility of communication through RS232, CAN and WiFi adapters to be able to monitor both locally and remotely. Its versatility is also remarkable, as it is compatible with virtually all solar inverters on the market, including the most popular brands.
- Dyness
- Battery
- Maximum capacity 5120Wh
- LiFePO4 51.2V / 100Ah Battery
- Compatible with most inverters on the market
- IP20
- Expandable up to 50 units in parallel
- Possibility of local and remote control
- Wall and rack mounting
- 6000 life cycles
- For On-Grid and Off-Grid photovoltaic applications
| Brand | Dyness |
| Capacity | 5120Wh |
| Nominal capacity | 100 Ah |
| Battery type | LiFePO4 51.2V / 100Ah |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8 ~ 57.6 V |
| Recommended charging / discharging current | 50 A |
| Load current at full power | 75 A |
| Discharge current at full power | 100 A |
| Peak power charge/discharge current | 110 A (15 s) |
| Life Cycle | +6000 |
| Nominal power | 2560 W |
| Maximum power | 4320 W |
| Maximum peak power | 5760 W (15 s) |
| Depth of discharge (DOD) | 90% |
| Recommended loading and unloading | 0.5C |
| Maximum discharge | 1C |
| Temp. Operation (load) | 0 - 55 ℃ |
| Temp. Operation (download) | -20 - 55 ℃ |
| Dimensions | 558(W) x 545(D) x 150(H) mm |
| Weight | 54 Kg |
| Protection | IP20 |
| Communication | CAN / RS485 / RS232 |
| Expansion | Up to 50 units in parallel |
| Compatibility | SMA / Victron / Ingeteam / Delios / Goodwe / Solis / Deye / SAJ / Voltronic / Sungrow / TBB ... |
- Dyness Battery
- Positive and negative power cables
- Inverter and parallel communication cables
- Earth cable
- User manual
- Installation material
