DORCAS
Dorcas electromagnetic suction cup - For single doors - Holding force 280 kg - Fail Safe (NC) opening mode - Flush mounting
SKU: DR-M-M600MS
375.00 kr
Ekskl. moms
På lager
Dorcas electromagnetic suction cup - For single doors - Holding force 280 kg - Fail Safe (NC) opening mode - Flush mounting
Kategori
Magnetic locks
Mærke
DORCAS
- Dorcas
- Electromagnetic lock for single doors
- Fail Safe functionality / Inverted (NC)
- Linear load resistance 280 kg
- Recessed installation
- Made of aluminum
| Brand | Dorcas |
| Model | DR-M-M600MS |
| Door type | Simple: 1 folding sheet |
| Opening mode | Fail Safe / Inverted (NC) |
| Retention force | 280 kg |
| Power | DC 12 V / 400 mA máx. o DC 24 V / 200 mA max. (The change from 12 to 24 VDC is done automatically by the suction cup) |
| Mounting | Built-in |
| Protection | Interior |
| Material | Aluminium |
| Temp. operating | -60 ºC ~ +50 ºC |

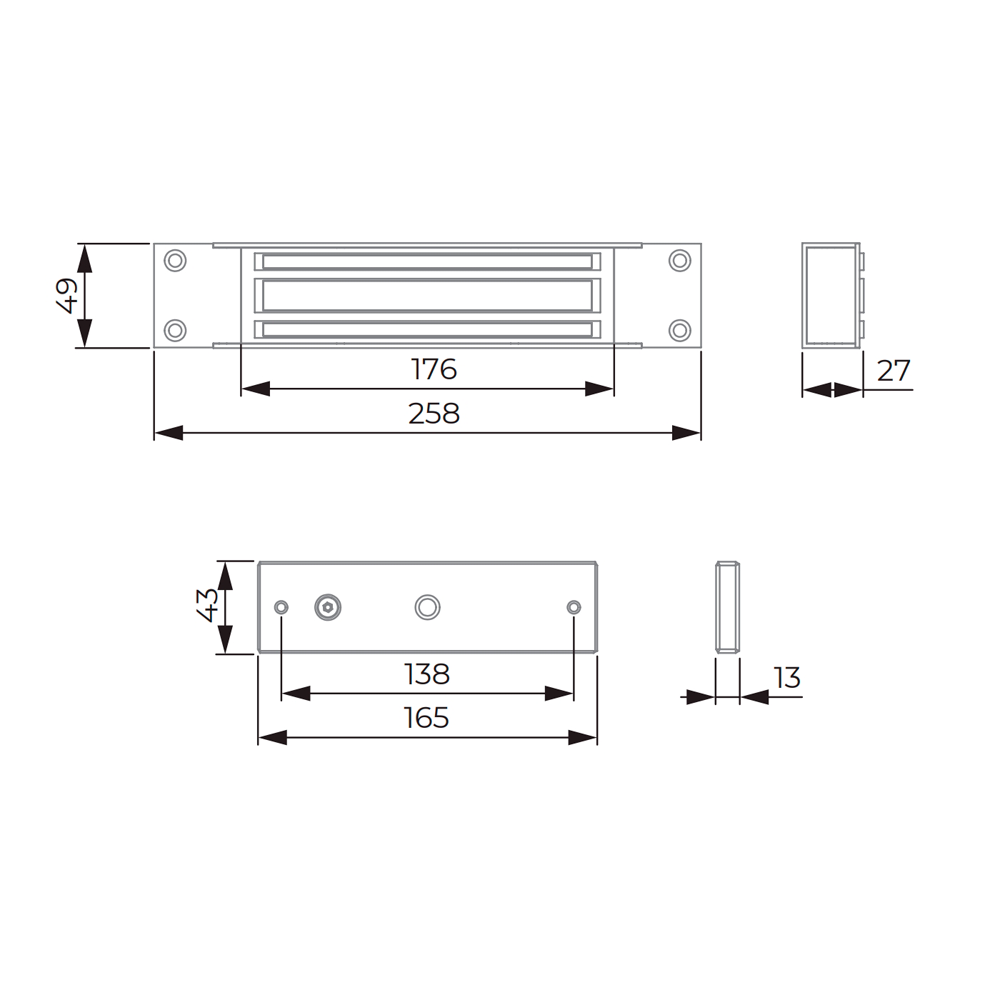

| Dimensions | Maglock: 258 (W) x 49 (H) x 27 (D) mm Counterplate: 165 (W) x 43 (H) x 13 (D) mm |
- Electromagnetic lock
- Magnetisation plate
- Installation material
- User instructions
