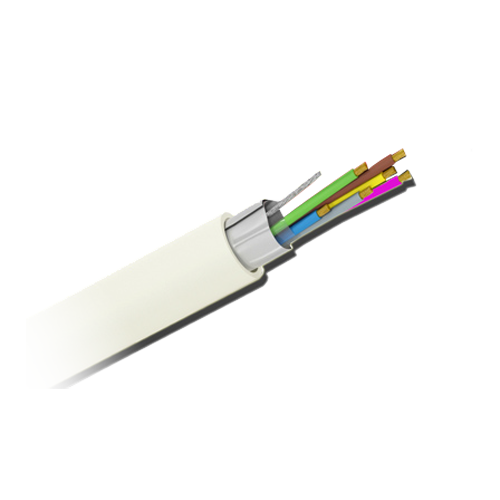

8 conductors - Conductor Flexible electrolytic copper Class 5 - CuSn Aluminium polyester screen + drain - Bobbin of 100 meters - CPR Certificate: B2ca -s1a, d0, a1 - Low loss
SKU: CA8-100-H
675.00 kr
Ekskl. moms
Udsolgt
8 conductors - Conductor Flexible electrolytic copper Class 5 - CuSn Aluminium polyester screen + drain - Bobbin of 100 meters - CPR Certificate: B2ca -s1a, d0, a1 - Low loss
- Bobbin of cable
- 100 m
- Alarm
- 8 conductors
- Inner conductor Class 5 Flexible electrolytic copper 0,22 mm2
- PE isolation
- Screen Aluminium polyester with 96% coverage+CuSn drainage
- Polyolefin Sheath LSH0
- Halogen free
- CPR Certificate: B2ca -s1a, d0, a1
| Length | 100 m |
| Interior conductor | Flexible electrolytic copper AWG24 0,22 mm2 Class 5 |
| Isolation | Polyethylene |
| Formation of the wires | Twisted |
| Screen | Aluminium polyester with 96% coating+CuSn drainage |
| External cover | Polyolefin LHS0 |
| Number of conductors | 8 signal |
| Conductivity | <10μS/mm |
| Resistance | 106 Ohm/km signal |
| Temp. operation | 0º C ~ 70º C |
| Certification | CPR (B2ca -s1a, d0, a1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2 |
- Bobbin of cable
