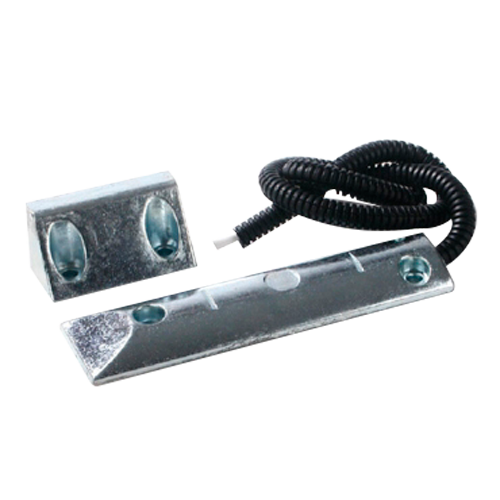

FDP
FDP magnetic contact for shutter - For installation in metal - Reed technology High power - System of 4 armored wires - Metal cover - Suitable for exterior IP65 - Grade 2 approved
SKU: A-SC4
84.00 kr
Ekskl. moms
Udsolgt
FDP magnetic contact for shutter - For installation in metal - Reed technology High power - System of 4 armored wires - Metal cover - Suitable for exterior IP65 - Grade 2 approved
- FDP
- Magnetic contact for shutters and metallic doors
- Reed Technology
- High power
- Suitable for metal installation
- High resistance to mechanical and electrical shocks
- 4 Wire mesh system
- Metal cover
- Suitable for exterior IP65
- Grade 2 approved
| Brand | FDP |
| Security grade | Grade 2 (EN50131-2-6) |
| Environmental class | Class 2 / Suitable for outdoor IP65 |
| Technology | Reed |
| Power | High power |
| Installation Form | Shutters and metal doors |
| Cable length | 4 wires 60cm shell |
| Magnet | Neodymium |
| Electrical parameters | 100 VDC max, 1A |
| Material | Metal |
| Dimensions (Detector / magnet) | 151 x 41 x 12 mm / 60.5 x 28.5 x 12 mm |
- Magnetic contact
- Installation material
- User instructions
