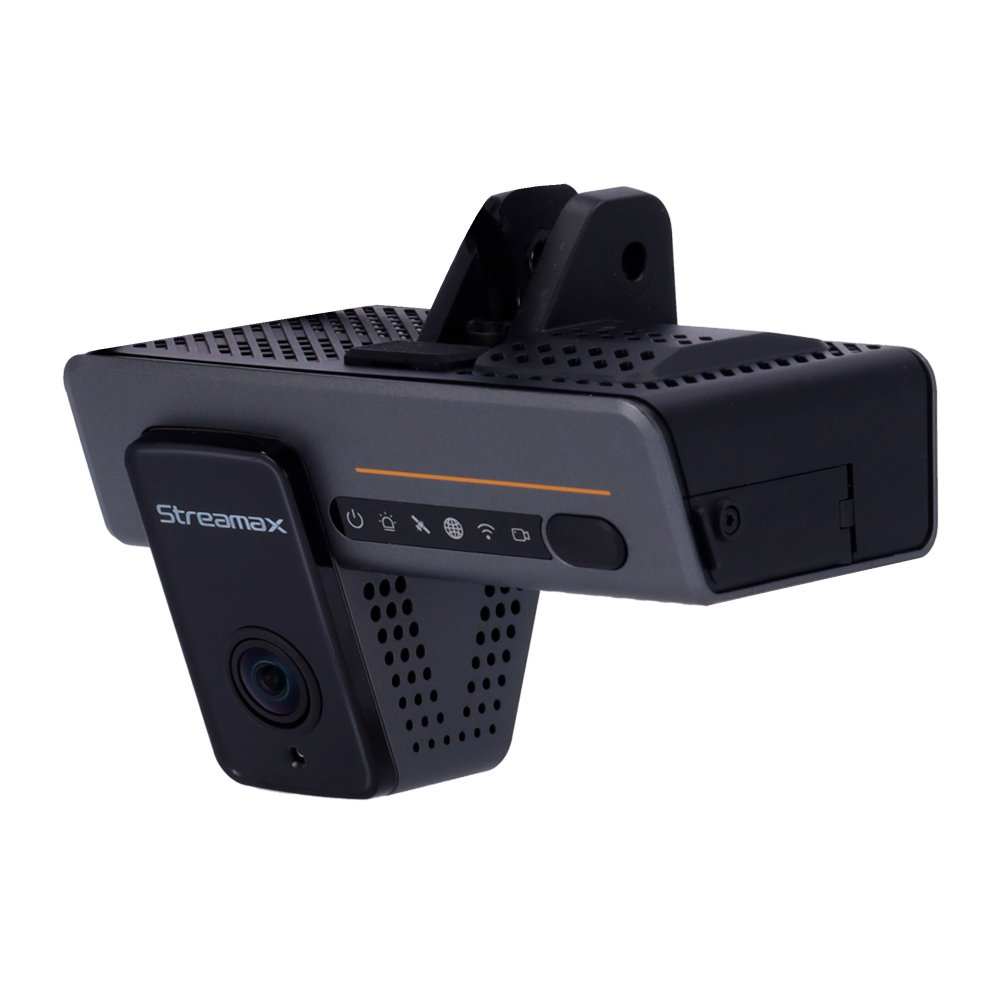

ST-C6LITE-V2

Name: ST-C6LITE-V2
Brand: STREAMAX
SKU: 18557
Availability: InStock

3.151,10 kr.

Add to wishlist

Category: Streamax

Additional information

Operating system	Embedded Linux
Languages	Chinese, English, Spanish, Portuguese, French, Russian, Japanese, Russian, Japanese
Encryption	AES256
Data transmission	TLS1.3
Sensor	Dashcam: 1/2.9" CMOSBooth: 1/2.9" CMOS
Resolution	Dashcam: 2 MpxBooth: 2Mpx
Audio	Noise-canceling microphone and speaker for two-way communication3W of loudspeaker power
Input resolution	Dashcam: 1080P @ 20FPSBooth: 1080P @ 20FPS
Recording resolution	Main stream: 1080P@20 FPS(Dashcam)+1080P@20 FPS(Cabin)Sub-stream: 2 Ã CIF@30 FPS
Audio Compression	ADPCM/G.711/G.726
Lens	Dashcam: 4 mm (H: 89Âº, V: 46Âº)Booth: 2.2 mm (H: 151Âº, V: 84Âº)
Lighting	Dashcam – Colour: 0.05Lux/F1.2 with BLC Signal to noise ratio >48dBBooth – WDR with BLC Signal to noise ratio >45dB Integrated IR
Summary of Functions	Live viewing, video recording, video playback, network streaming and GPS positioning. ADAS and DSM functions.
ADAS	LDW (lane change without turn signal)HMW (closeness to the front vehicle)FCW (collision)
DSM	Camera obstructionTiredness (yawning)Cell phone useSmokingDistractionDriverless with vehicle in motionUnbelted
4G Communication	1x SIM Slot: SIM card slotLTE FDD: B1/B3/B7/B8/B20/B28ALTE TDD: B38/B40/B41WCDMA: B1/B8GSM: B3/B8
Wi-Fi communication	2.4 GHz (IEEE Std.802.11a/IEEE Std.802.11b/ IEEE Std.802.11g/IEEE Std.802.11n)
Bluetooth communication	Supported
Image enhancement	Brightness, Chroma, Contrast, Saturation, Sharpness, BLC and DWDR adjustment
Video compression	H.265 / H.264
Positioning	GPS L1 1575.42MHzGALILEO E1B/C1GLONASS L1OF 1602MHzSBAS: WAAS, EGNOS, MSAS, GAGAN
Sensors	Accelerometer: 6 axes (collision detection, hard cornering, hard braking)Twilight sensor for day/night switching of cabin cameras1x RS2321x CAN
Alarms	2 Inputs, 1 output
CAN Bus	Supported
USB	x1 mini USB connector
Button	Double-tap to switch between client and AP mode
Network Protocols	HTTP, TCP, ARP, UDP, UDP, FTP, DHCP, DNS, IPV4, NTP
Storage	2x MicroSD card slots up to 512GB per slot, requires class 10
Management software	CEIBA II or FTCLOUD centralized server
Working temperature	-40ÂºC to 70ÂºC
Storing temperature	-40â~85â
Relative humidity	15% – 95% no condensation
Protection	IP30
Power	DC 9-24V, Max. 11.5W
Certificates	Emark, CE-RED, FCC-ID, EN50155-EMC, UKCA, EN50155, ROHS, REACH, PTCRB, AT&T, Verizon
Installation	On windshield
LED indicators	PowerAlarm indicatorGPS indicatorNetwork indicatorWifi indicatorRecording indicator
Dimensions	116.5 Ã 67.8 Ã 110.42
Weight	313g
