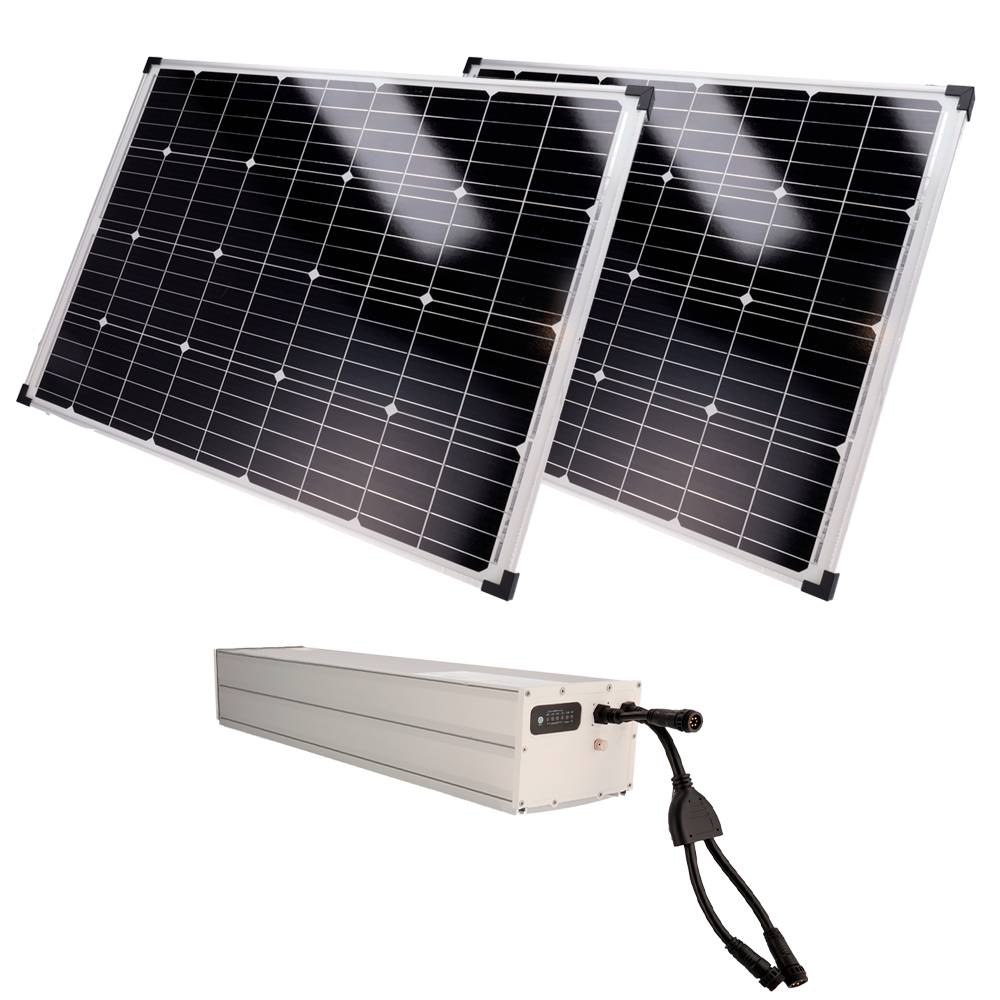

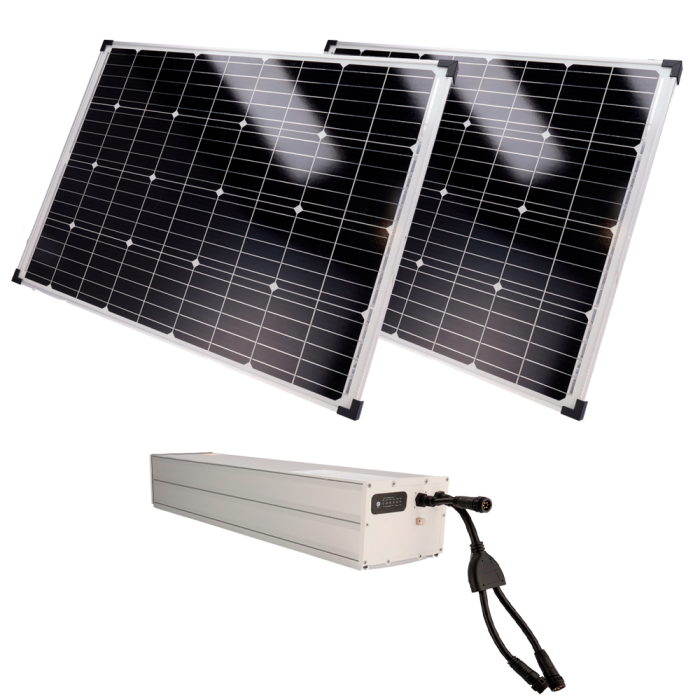

Name: SF-SOLARKIT-BATT-2560WH-24V
Brand: SAFIRE
SKU: 17655
Availability: InStock

SF-SOLARKIT-BATT-2560WH-24V

14.442,56 kr.

Additional information

Power	2x 200W
Power tolerance (W)	Â±3%
Cells	166 monocrystalline
Short circuit current	16.66A
Open circuit voltage	22.2V
Efficiency	21.8%
Glass thickness	3.2mm
Maximum load capacity	60 m/s (5Kg/sg.m)
Maximum hail load	23m/s, 7.53g
Temperature range	-40ÂºC ~ 85ÂºC
Module dimensions	1223 (W) x 879 (H) x 38(Fo) mm / panel
Weight	22.3Kg
Degree of protection	IP67
Material	Lithium LiFePo4
Capacity	2560Wh (200Ah)
Regulator	Integrated MPPT with 12/24V output
Cycles	>2000
Solar input voltage	18V
Load voltage	10-14.6V
Output voltage	12/24VDC
Maximum charge current	20A
Output current	12V 5A, 24V 5A
Operating temperature	Charge: 0 Â°C to 60 Â°C (32 Â°F to 140 Â°F)Discharge: -30 Â°C to 60 Â°C (-22 Â°F to 140 Â°F)
Maximum output power	80W (12V), 48W (24V)Total 80W
Maximum input power	500W
Dimensions	781 (W) x 177 (H) x 133 (D) mm
Communication	RS485 (For integration with third parties). Provides all system information such as load level, system status or power consumption
Bracket	Anchoring to a mast or vertical infrastructure
