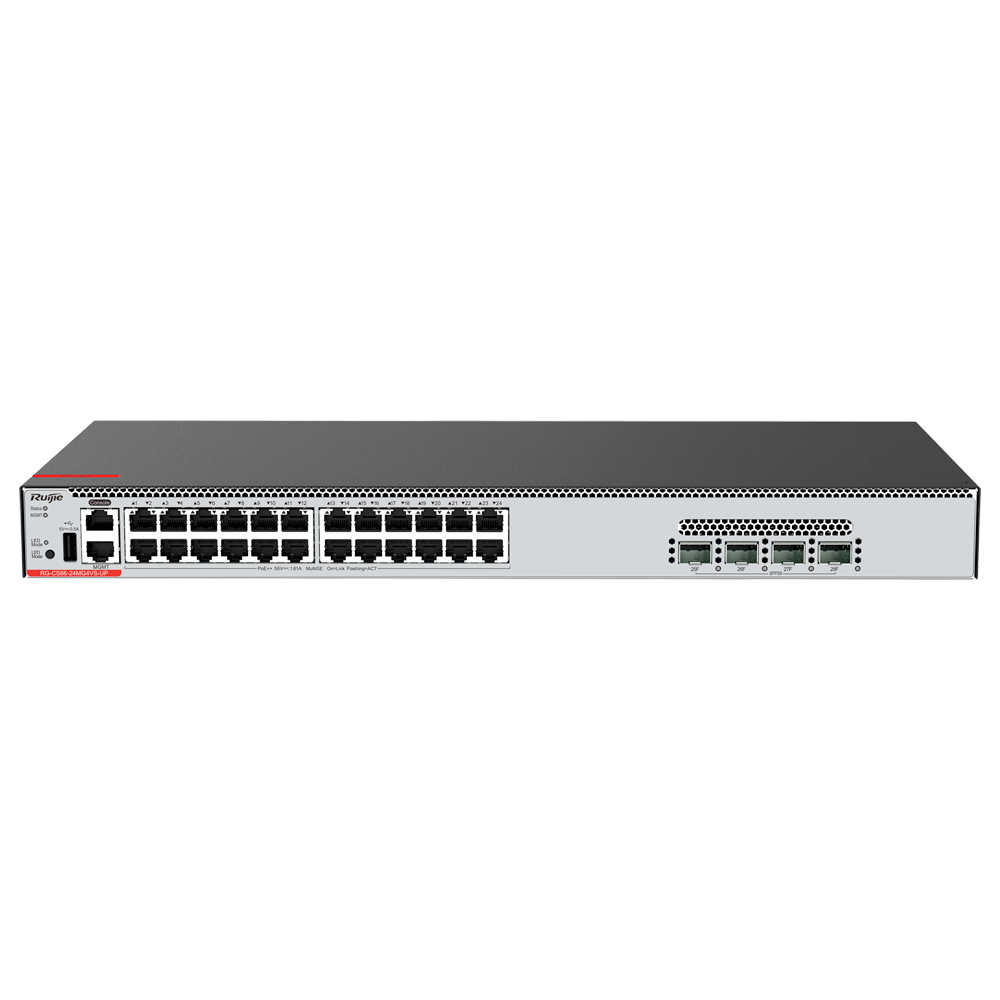

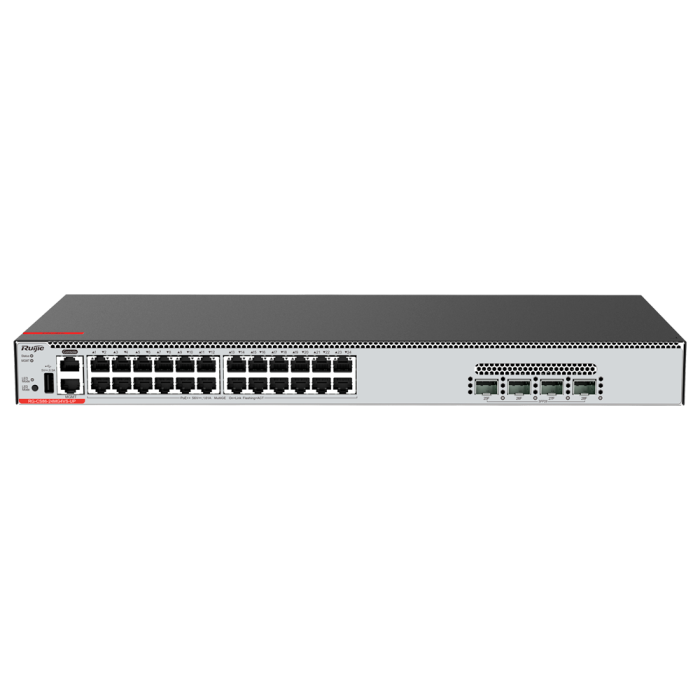

Name: RG-CS86-24MG4VS-UP
Brand: RUIJIE
SKU: 21947
Availability: InStock

RG-CS86-24MG4VS-UP

27.367,01 kr.

Description

Ruijie
Manageable Switch Layer 3
24 ports 100/1000/2.5G/5G/BASE-T + 4 ports 10/25GE SFP28
24 PoE++ Ports 802.3af/at/bt
Supports PoE power supply up up 370W in total for all ports
Fixed and included power supply
Rackmount;

Additional information

Port speed	24 x 100/1000/2.5G/5GBASE-T + 4 x 10/25Gb SFP28
VLAN	Up to 4096 802.1Q / Port-based / Private VLAN / GVRP / Super VLAN / Basic QinQ
Switching Capacity	440 Gbps
Reshipment Rate	327 Mbps
MAC Table	32K
ARP Table	16K
Routers Table	16K IPv4 + 16K IPv6 (unicast) 4000 IPv4 + 2000 IPv6 (multicast)
PoE features	24 PoE/PoE+/PoE++ ports 802.3af/at/bt (90W)
Total PoE Power	The equipment includes power supply.370W Maximum output power.
Redundancy control	STP, RSTP, MSTP, LACP, ERPS
Protocol Management	Web/Cloud/APP, SNMP, CLI, RMON, Telnet, CWMP
Aggregation	128 LACP ports 802.3ad
DHCP	Server / Client / Snooping / Relay / IPV6 Snooping / Ipv6 Client / IPSv6 Relay
Routing	Static / RIP / RIPng / OSPFv2 / OSPFv3 / IS-ISv4 / IS-ISv6 / BGP4 / BGP4+ / ECMP
ACL	Standard and Extended ACLs
QoS	8 priorities per port: SP, WRR, DRR, SP+WRR, SP+DRR, RED/WRED
Multicast	IGMP v1/v2/v3 / IGMP proxy / IGMP v1/v2/v3 snooping / IGMP filtering / IGMP immediate leave / PIM-DM / PIM-SM / PIM-SSM / MLD Snooping v1/v2 / MLDv1/v2 / MSDP / PIM-SMv6 / PIunM-SSMv6
Security	AAA / RADIUS / TACAS+ / 802.1x / SSH v1,v2 / IP Source Guard / CPP and NFPP / SAVI / Port Protection / RPF
Consumption	Without PoE < 120W, With PoE < 460W
Operating temperature	0Â° C – 45Â° C
Redundant fans	Included 1 unit for 1 Slot
Power supply	Fixed and Included
Dimensions	442 x 220 x 43.6 mm
Power	AC 100 V – 240 V
Weight	3,65 Kg
