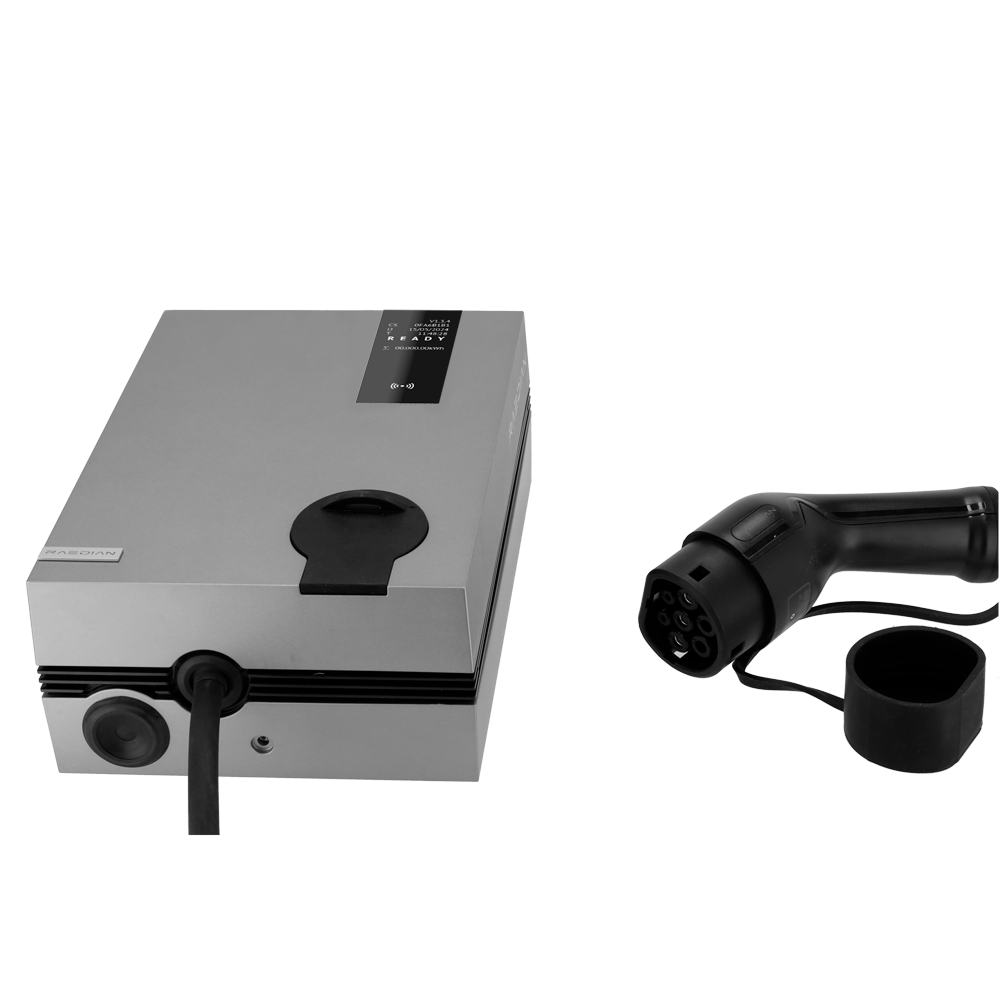

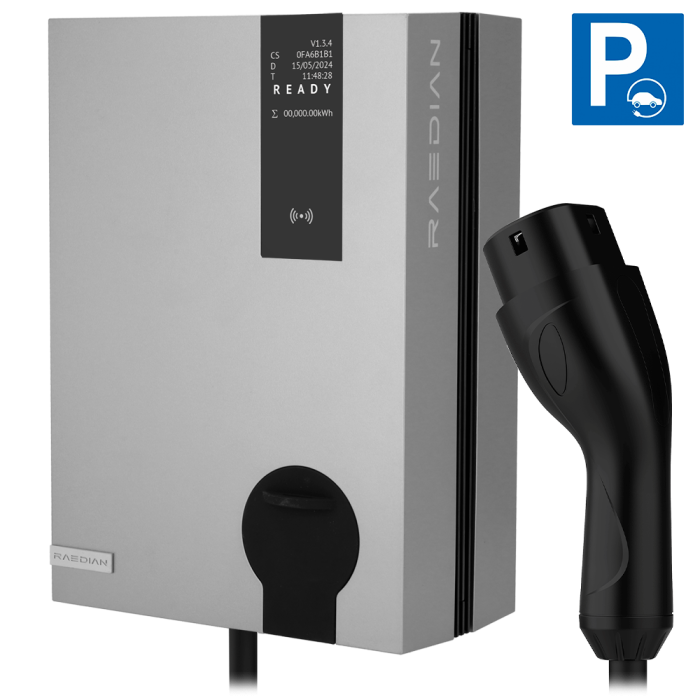

Name: RD-NEX-11-C5-SILVER
Brand: RAEDIAN
SKU: 15552
Availability: InStock

RD-NEX-11-C5-SILVER

8.698,36 kr.

Additional information

Connector	Type 2
Charging mode	3 Mode
Connection type	Three-phase
Maximum power	6.3 KW single phase11 three-phase kW
Maximum current	27.5 A
Voltage range	230V single-phase400V three phase
Input frequency	50 / 60 Hz
Authentication	Plug & ChargeRFIDBLE (via RAEDIAN App)OCPP 1.6 Backend
Connectivity	WiFi, BLE, 4G, LAN
Display	OLED screen: Status and measurement data
Load management	Direct to CT clamp (dynamic load balancing)A certified external meter (dynamic load balancing with solar surplus) with RS485Backend with OCPPStatic load management with the RAEDIAN App
HMI	LED Strips
Installation	Wall, pedestal
Cable supplied	5m
Working temperature	-30â ~ +55â
Grounding	TN/TT/IT
Relative humidity	5% – 95%
Consumption in standby mode	4.5W
Degree of protection	IP55, IK10
Dimensions	297 (H) x 210 (W) x 110 (D) mm
Weight	4.7 kg
Protection	UVP, OVP, OCP, Relay Stuck, Overtemperature, IEC residual current 62955
Meter	MID Class B Certificate
Operating altitude	Up to 3000m
Colour	Metallic silver
