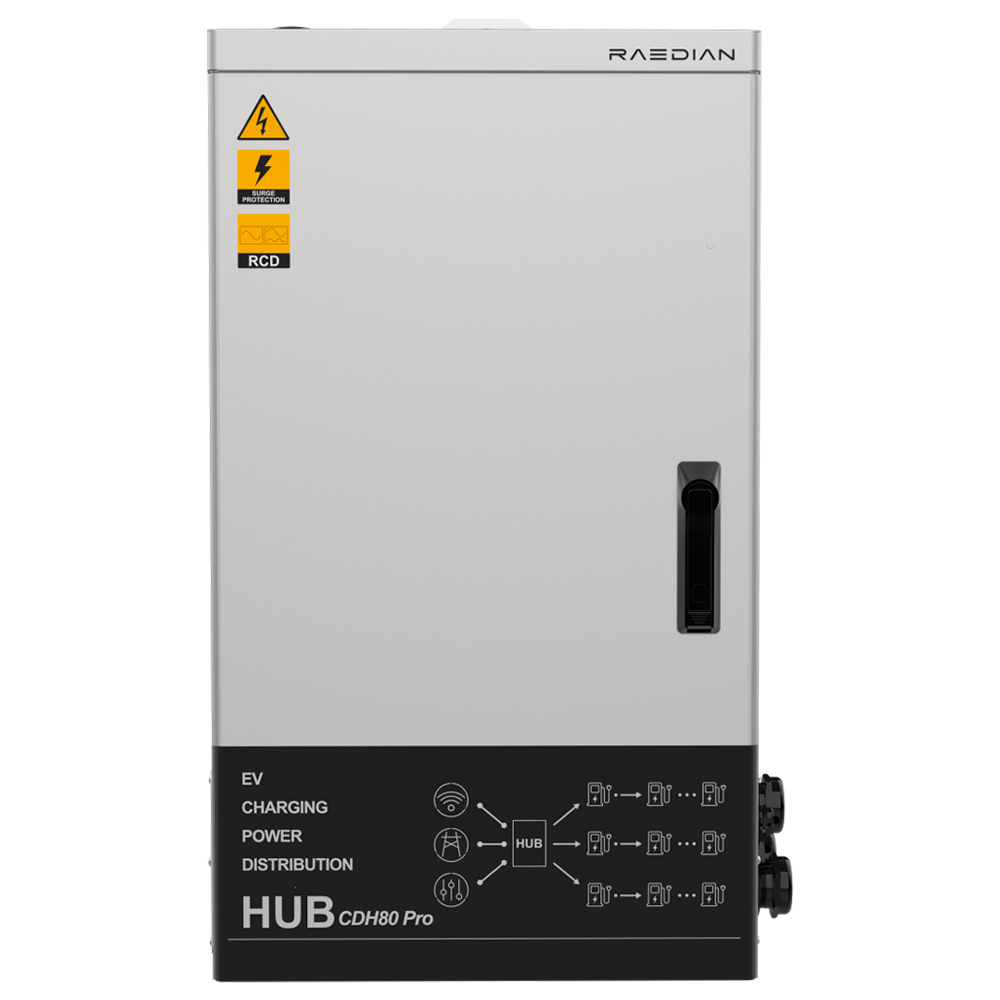

Name: RD-HUB-3P-80A
Brand: RAEDIAN
SKU: 15450
Availability: InStock

RD-HUB-3P-80A

20.515,00 kr.

Additional information

Device Type	HUB for electric vehicle chargers
Electrical mesh	3P + N + PE
Operating voltage	230/400 Vac
Work frequency	50/60 Hz
Maximum current	80A
Load circuits	1x 80A
Grounding	TN/TT/IT
Mounting	Wall, floor, base on floor
Surge protection	Type II (Type I + II optional)Rated discharge current 12.5kAMaximum discharge current 50kAMaximum voltage protection< 1.4kVMaximum impulse voltage 6kV
Differential protection	IEC EN 60947TMDInterruption capacity 25kARated impulse voltage 8kVOptional remote shutdown
Measurement	Accuracy class B with CT clamps
Operating temperature	-30 ~ 50ÂºC
Operating altitude	2000m
Environmental protection	IP65, IK10
Dimensions	800 x 460 x 250 mm
Weight	25 kg
Certification	IEC/EN 60947, EN 61439-3, EN 50470
