Name: QL-GV75MG
Brand: QUECLINK
SKU: 15216
Availability: InStock

QL-GV75MG

279,00 kr.

Description

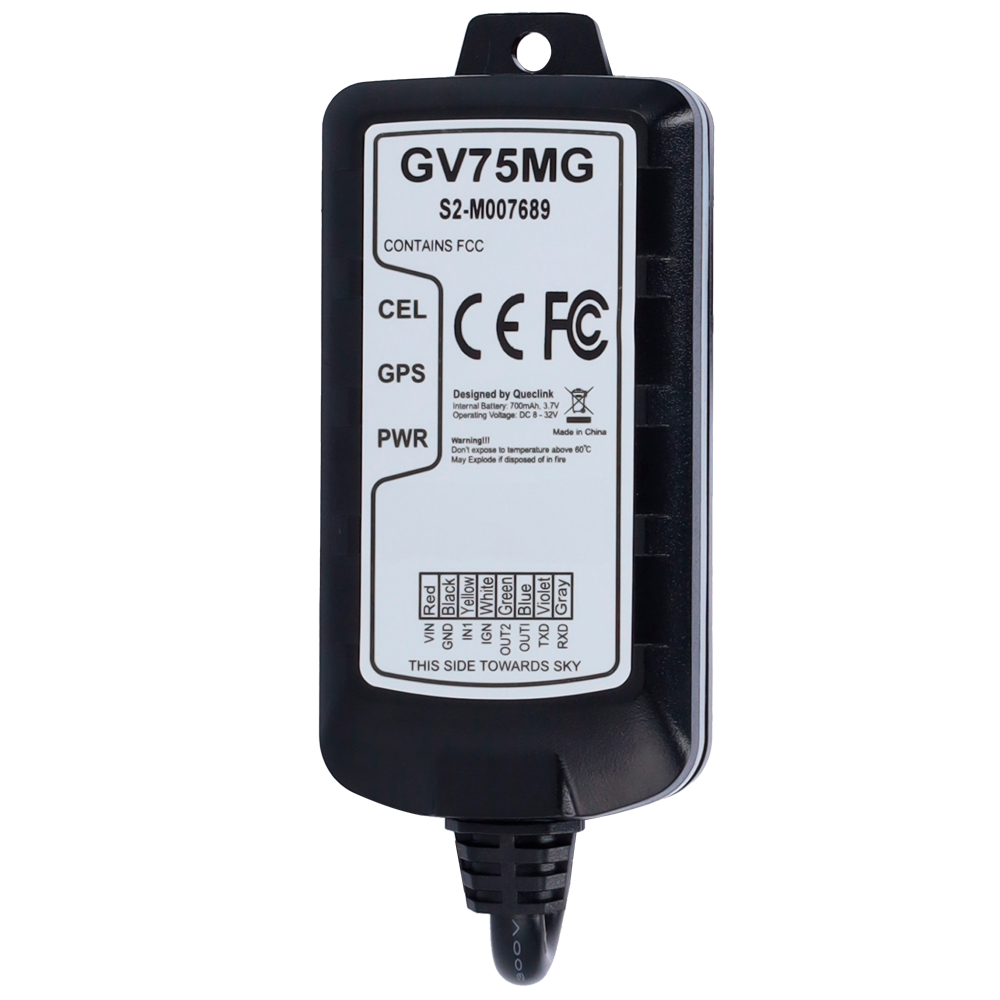

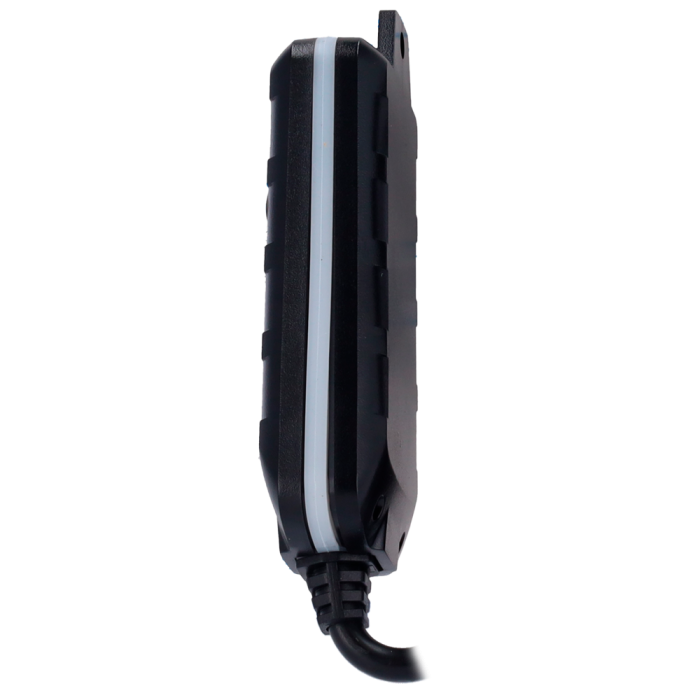

Compact locator ideal for installation on motorcycles or boats. 0 consumption which allows vehicles to be left unattended for an extended period of time without concern for battery drainage. Manufactured waterproof and dustproof with IP protection 67.

Quecklink
LTE Cat M1/NB1 global LTE with 2G backup [%VAR%] with single antenna
Zero power consumption when off
Multiple I/O, including serial port RS232 and digital I/O
Weatherproof, IP67
Ideal for boats, motorcycles and vehicles

Additional information

LTE data transmission	eMTC (DL) 375 KbpseMTC (UL) 375 KbpsNB1 (DL) 32 Kbps ,NB1 (UL) 70 Kbps
Work frequency	EGPRS 850/900/1800/1900 MHz
EGPRS data transmission	GPRS multi-slot class 33 (33 default)EDGE multi-slot class 33 (33 by default)
GNSS type	U-blox all-in-one GNSS receiver
Sensitivity	Autonomous: -147 dBmHot start: -156 dBmBuyback: -160 dBmTracking: -162 dBm
Positioning accuracy	< 2.5m
TTFF (in open field)	Cold start: average of 27 sHot start: average of 27 sHot start: average of 1 s
Dimensions	102mm Ã 46mm Ã 20.5mm
Weight	110g
Backup battery	Lithium Polymer 700mA
Working voltage	from 8 to 32V DC
Working temperature	-30â ~ +80â-40â ~ +80â for storage
Protection	IP 67
Consumption	Zero power consumption with contact off to prevent battery discharge
Buffer	Up to 10000 messages
Digital Inputs	2 digital inputs, including1 positive trigger for ignition detection1 negative trigger input for normal use
Digital output	1 digital output, open drain, maximum drive current drain 150 mA
Interlocked Digital Output	1 digital output with internal latching circuit, open drain, max. drive current drain of 150 mA
Serial port	1 serial port RS232 on 8 pin cable, used for external devices
LTE Antenna	Internal only
GPS Antenna	Internal only
Led indicator	CEL, GNSS, PWR
Transmission protocols	TCP, UDP, SMS
Scheduled report	Reports position at preset time and distance intervals
Geofence	Geo-fence alarm and parking alarm, supports up to 20 internal geo-fence regions
Alarms	Low battery, ignition, crawl, driver behavior, collision, special based on digital inputs
Remote control	OTA control of digital outputs
