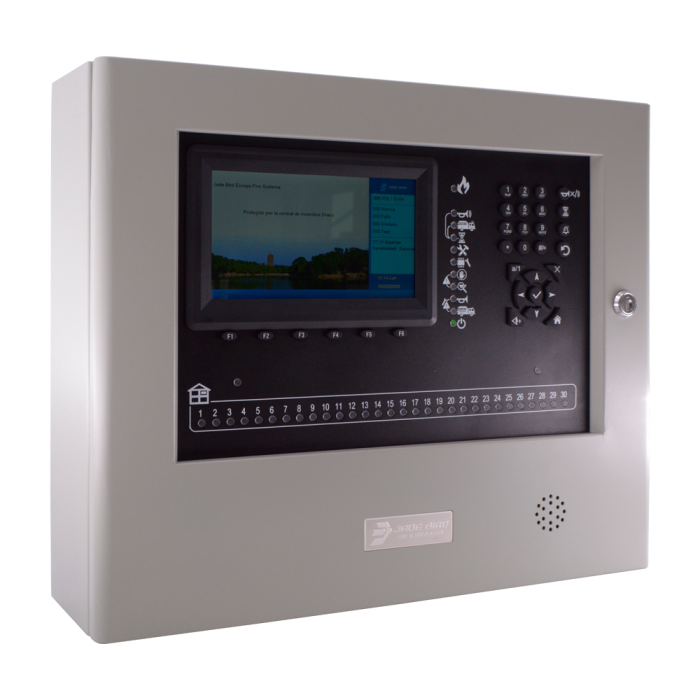

Name: JBE-P2L1.2L
Brand: JADE BIRD
SKU: 14020
Availability: InStock

JBE-P2L1.2L

5.729,59 kr.

Category: Panels

Additional information

Maximum number of devices	400
Maximum loop distance	2.000 m
Recommended cable type	2 x 1.5 mmÂ² unshielded twisted pair
Loop voltage	20~30V
Available current per loop	200 mA
External power outputs	2 x 2A@24 VDC
Cable input	Perforations of Ã20 mm (14x)
Alarm and Fault Outputs	Normally open relays without voltage (up to 2A@30 VDC)
Power	230 VAC (196 – 253 V) 2.5A max.
Protection fuse	2.5 A
Battery capacity	2x 12V 7Ah~12Ah
Operating temperature	-5 to +40 Â°C
Storing temperature	-20 to +55 Â°C
Humidity (non condensing)	< 95 %
Degree of protection	IP30
Dimensions	440 (W) x 370 (H) x 126 (D) mm
Weight (without batteries)	4 kg
Standards	EN 54-2 and EN 54-4
DoP	DoP-0370-CPR-3813-1
