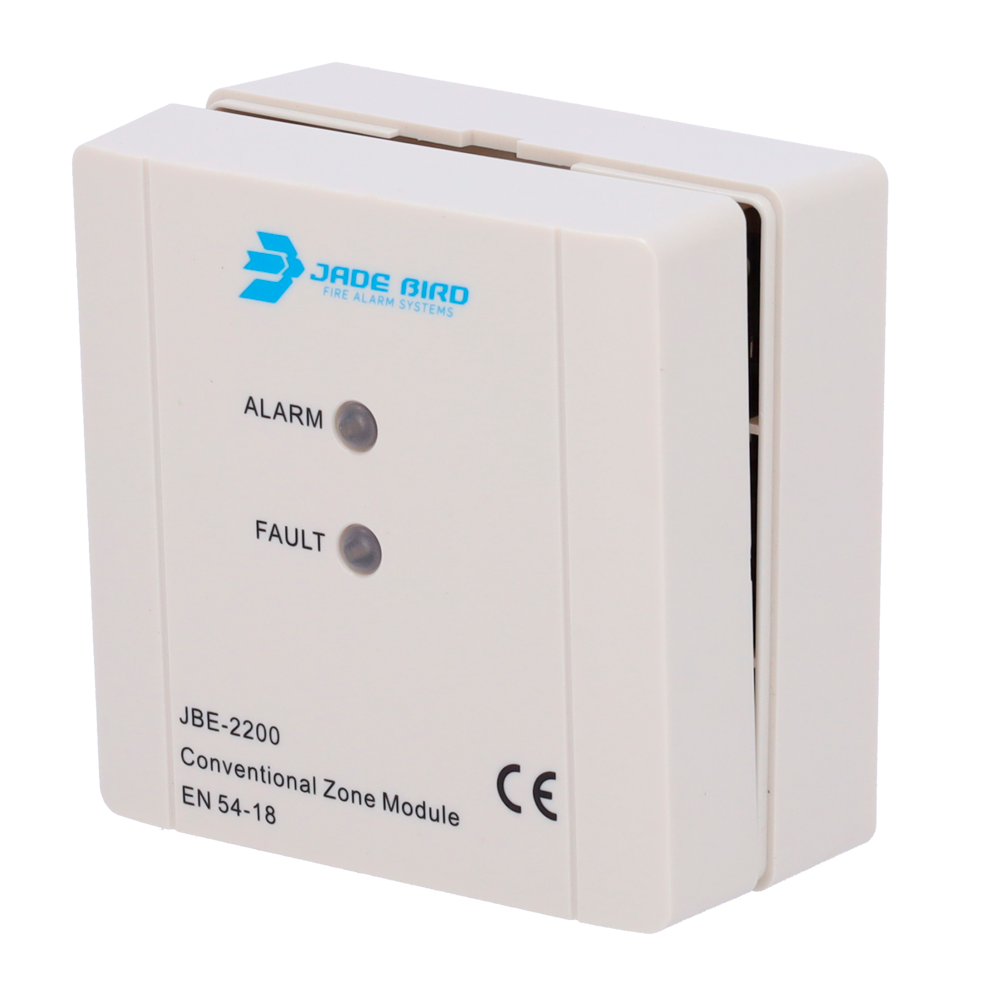

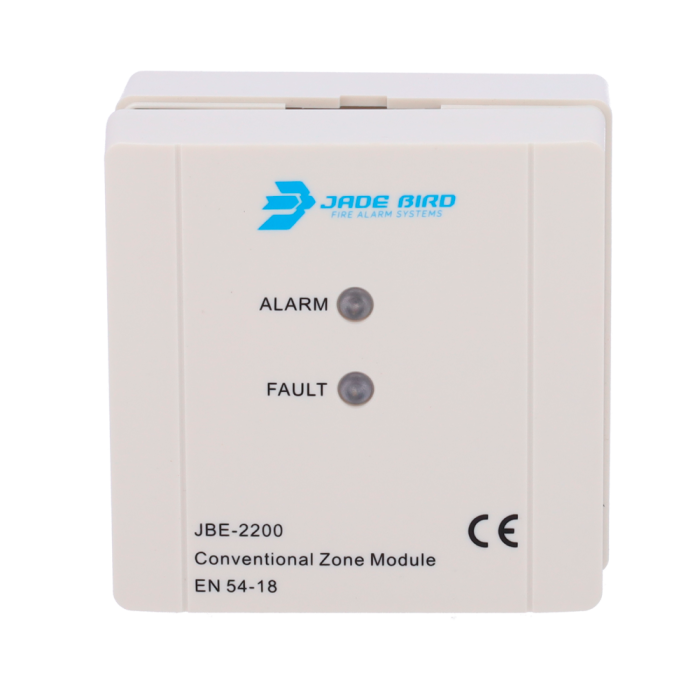

Name: JBE-2200
Brand: JADE BIRD
SKU: 21225
Availability: InStock

JBE-2200

512,88 kr.

Additional information

Operating voltage	DC 19 – 30 V
Connection	JBE communication bus 2-hilos, without polarityPower supply 24V DC to 2-hilos, no polarity
Wired	Twisted pair without braid 0.5 – 2.5 mm2
Power consumption;with 24VDC	â¤2 mA @24 V (Loop Consumption)â¤8 mA @24 V (Consumption of 24 V DC – Rest)â¤42 mA @24 V (Consumption of 24 V DC – Active)
REOL zone	4.7 kÎ©
REOL external PSU	4.7 kÎ©
Temp. of work	-10â ~ +55â
Temp. storage	-20â ~ +60â
ENVIRONMENT	â¤ 95% HR (40Â±2â) (no condensation or icing)
Address	Addressing tool JBE-AT1
Address range	1-200
Led indicator;Red (ALARM)	Rest: Flashing with loop pollingAlarm: Steady on when activated
Led indicator;Orange (FAULT);	Open: Fixed ignitionLow Voltage: Blinks 1 once per secondShort circuit: Blinks 2 times per secondOverconsumption: Continuous flickeringReset: Flashes during reset (3 seconds)
Dimensions	85Ã85×41 mm (length x width x height)
Weight	0.1 kg (including base)
IP Rating	IP40
Remote indicator	LED with or without series resistor (Rs
Certificado	EN 54-18:2005EN 54-18:2005/AC:2007
