Name: DS-2XC3686G0H-LIZSU(PA)(2.7-13.5mm)
Brand: HIKVISION SOLUTIONS
SKU: 20588
Availability: InStock

DS-2XC3686G0H-LIZSU(PA)(2.7-13.5mm)

9.189,08 kr.

Description

Hikvision
SOLUTIONS range

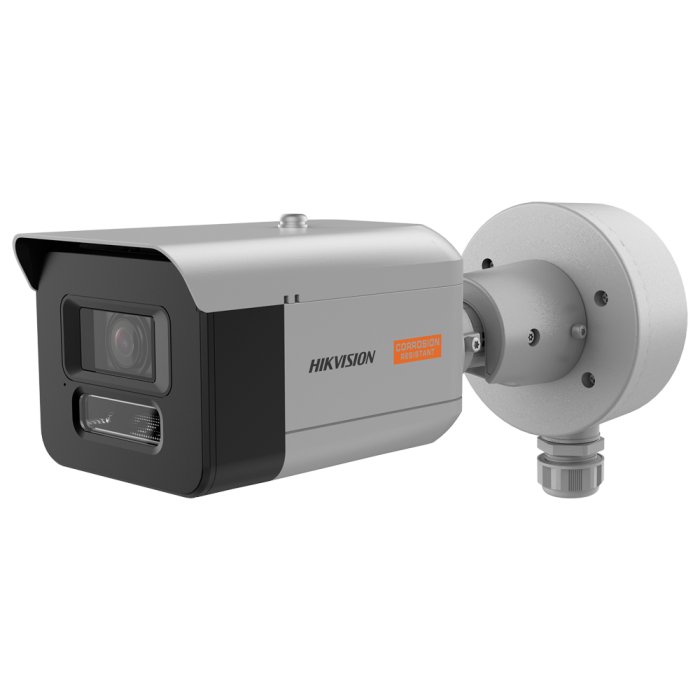

Bullet IP camera
1/1.8″ Progressive Scan CMOS
Resolution 8 MPx (3840×2160) MPx [%VAR%]
2.7~13.5 mm Varifocal Motorised Lens
Compression H.265+ / H.265 / H.264+ / H.264
0 lux
Hybrid light: IR and white light
Hybrid light range 50 m
ColorVu: color image 24 hours
Motion detection 2.0
AcuSense, false alarm filter for vehicles and persons (in line crossing and area intrusion)
WDR (130 dB)
3D-DNR
MicroSD storage up to 1TB
Alarms
Audio
Integrated dual array microphone
PoE (IEEE802.3af)
Weatherproof IP67
Vandal proof IK10
NEMA corrosion protection 4X
Encapsulated in anti-corrosion polymer
Junction box DS-1280ZJ-DM46 included

Additional information

Range	SOLUTIONS
Image sensor	1/1.8â Progressive Scan CMOS
Max. Resolution	8 Megapixel (3840×2160)
Main Stream rate	20fps (3840×2160, 3072×1728, 2560×1440, 1920Ã1080, 1280×720)
Sub Stream Rate	20fps (704×576, 640×480)
Third stream rate	10fps (1920×1080, 1280×720, 704×576, 640×480)* Third stream is supported under certain configurations
Fourth Stream	10fps (1280×720, 640×480, 640×360)* The fourth stream is supported under certain configurations
Lens	Motorized varifocal 2.7~13.5 mm
Viewing Angle (FOV)	112.3~41.2Âº (H), 58.1~23.1Âº (V), 137.4~47.3Âº (D)
Range performance	89.2~220 m (D), 35.4~87.3 m (O), 17.8~44 m (RI), 8.9~22 m (I)
Minimum illumination	0.0008 Lux@(F1.2, AGC ON) / 0 Lux with IR
Supplementary lighting	Hybrid light: IP and white lightIR range of 50 mWhite light range 50 m
Day / Night	ColorVu: Color image 24 hours
Compression	H.265+ / H.264+ / H.265 / H.264
Bitrate	32 Kbps ~ 16 Mbps
Electronic Shutter	1/3 ~ 1/100.000 s
Image improvements	WDR (130 dB), 3D-DNR, BLC, HLC, AGC, AWB, ROI, Mirror Effect
ANR	Yes
Motion Detection	Motion detection 2.0 with human and vehicle classification applied in motion detection.
Intelligent functions	AcuSenseDeepLearning based technology for human and vehicle classification with false alarm reduction applied on:Line Crossing, Area Intrusion, Area Entry, and Area Exit.
Alarms	1 input / 1 output
Audio	1 input / 1 outputIntegrated dual array microphone
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio bitrate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 a 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Ambient noise filtering	Yes
Network Interface	RJ45: Ethernet 10/100M BaseT
Internal memory	Slot for MicroSD card up to 1 TB
Remote access	Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central
Interoperability	ONVIF (Profile S, G, T), ISAPI, SDK, ISUP
Power	DC 12 V, 920 mA, max. 11 WPoE (IEEE802.3af)
Temp. operation	-30Âº C ~ +60Âº C
Material	Stainless steel 316L and anti-corrosion coating
Degree of protection	Weatherproof IP67Anti-corrosion NEMA 4X
Dimensions	120.8 (W) mm x 121.36 (H) mm x 294.27 (L) mm x [%VAR%] (D) mm
Weight	1480 g
