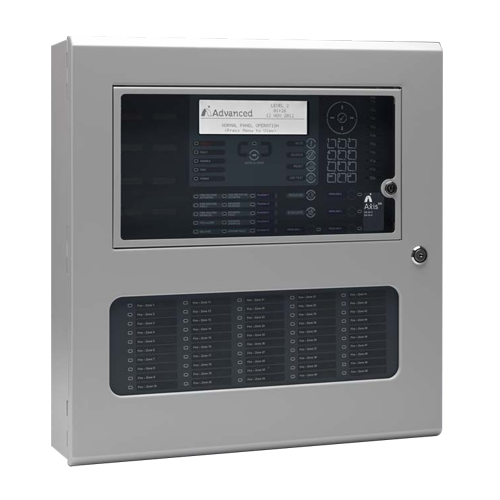

Name: ADV-ESMX-5402V
Brand: ADVANCED
SKU: 19810
Availability: InStock

ADV-ESMX-5402V

18.348,62 kr.

Category: Panels

Additional information

Core technology	Dual flash-based processors with real-time clock, diagnostics, programmable languages and character sets
Display	240 x 64 white backlit LCD screen.
LED indicators	22 red (1 x fire, 1 x more alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bicolor (fault and system)
Controls	Alphanumeric keypad that allows navigation, Reset, Mute buzzer, Mute sirens, Resonate, Evacuate and x4 programmable push-buttons
Protocols	Argus Vega (preinstalled), Apollo (XP95 / Discovery), Hochiki ESP and Nittan Evolution
Number of zones	2000 (200 per panel)
Number of loops	2 expandable to 4
Loop devices	240 in Argus Vega protocol (pre-installed), in the others it depends on the protocol
Loop	500mA
Siren outputs on plate	4 x 1 Programmable Amp
Relay outputs on plate	2 x 1 Amp 30v AC/DC programable(10mA, 5v min) – expandable to 4
Programmable inputs	1 x programmable supervised input in plate
Auxiliary output	24V 500mA
Main power supply	200 – 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max
Charger current	2A with temperature compensation
Serial port interface	1 x in plate, connection for PC RS232, modem, IP, or portable printer
USB interface	1 x USB Type B for PC connection
Program	Keypad and LCD (built-in) or PC with Windows software
Event Buffer	5000 for events and diagnosis + 500 fires
Networks	Optional network card (ADV-MXP-503 – standard, or ADV-MXP-509 – fault tolerant)
Printer (optional)	In plate (only in the M, L, D boxes)
Box / Color	Steel IP30 / RAL7035
Metalwork Options	Flush Mount Bezel, Battery Box, Special Utility Boxes, Termination Boxes and Rack Mount Profile
Dimensions (H x W x D mm)	Standard: 475 x 450 x 120 (default distributed format)Large: 475 x 450 x 190 (on request)Big Deep: 750 x 450 x 190 (on request)
Cable entry (20mm knockouts)	Standard: 19 x top, 11 x back and 2 x bottom (default distributed format)Large: 30 x top, 11 x rear and 3 x bottom (on request)Big Deep: 30 x top, 6 x rear and 3 x bottom (on request)
Battery capacity (Min - Max)	Standard: 24V 4Ah – 24V 18Ah (format distributed by default)Large: 24V 4Ah – 24V 45Ah (on request)Big Deep: 24V 4Ah – 24V 45Ah (on request)
